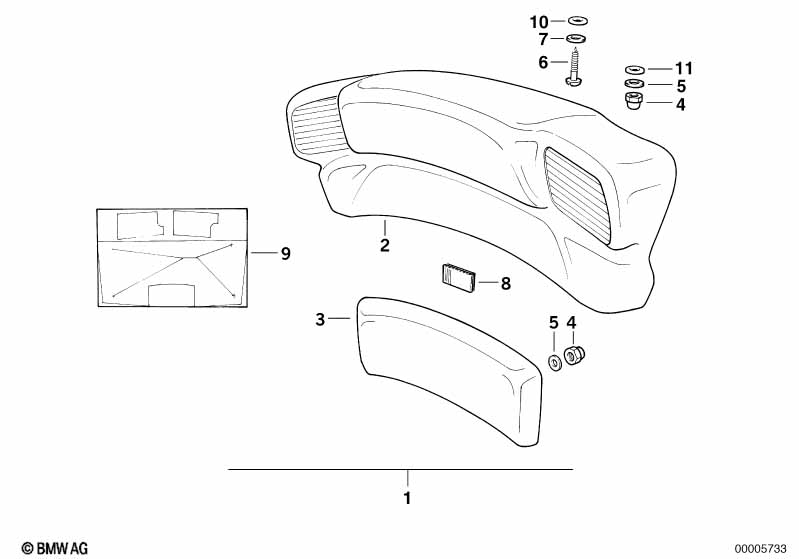

K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 RT (0565,0573) Backrest

Sponsored links

No.	Description	Supp.	Qty	From	Up To	Part Number	Price		Notes
01	Retrofit kit for backrest, black	35L	1			71602316730	$412.74		ENDED, +core
02	Backrest, black	35L	1			46542316666	$262.74		ENDED, +core
	only in conjunction with
--	Template		1			71602316737
--	Sealing compound	T33	1			16112315504			ENDED
03	Backrest, black	35L	1			46542316349	$96.25		ENDED, +core
04	Cap nut	M5	6			07119900327	$1.09
05	Washer	5,3 SW	6		12/1996	07119931030	$1.34		ENDED
06	Sheet metal screw	6,3X38	2			07119900425	$1.80
07	Washer	6,4	2			07119931087	$0.92
08	Hook&loop fastener	25X20	6			16112313042	$2.23		ENDED
09	Template		1			71602316737
10	O-ring	6.5X2.0	2			11611254062	$1.33		ENDED
11	O-ring	5X1,8	6			07119906351	$1.84

Notes

• ENDED = the part has been discontinued (no longer available).
• +core = plus core charge (possibility of a return of the old part)
