K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 RT (0565,0573) Reflectors

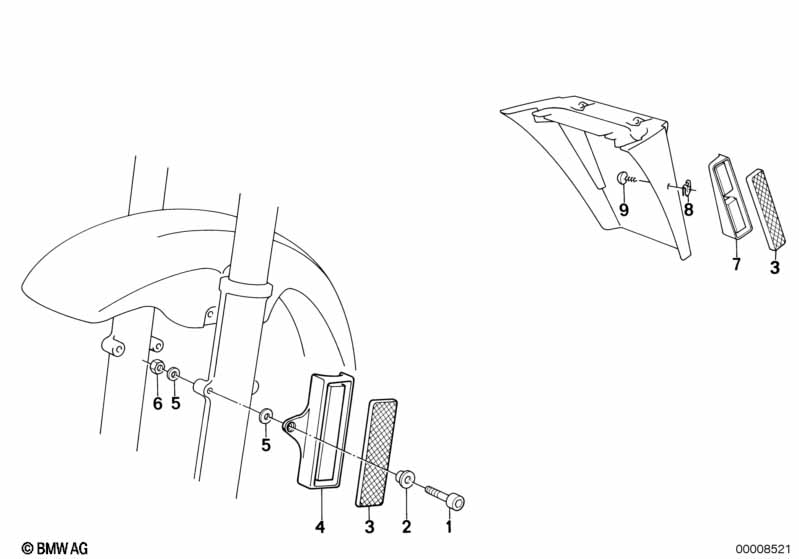

Reflectors
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Switzerland version

=Yes
01 Fillister-head screw M6X45-8.8 ZNS 4 46612322495 $1.19
02 Bush 4 63141459169 $0.84
03 Reflector, yellow 2 63141459035 $6.92
For vehicles with
Switzerland version

=Yes
03 Reflector, red 2 63141459401 $6.92
04 Holder 2 63141459168 $3.65
05 Washer A6,4-ZNS 6 12/1996 07119931018 $0.40 ENDED
05 Washer A6,4-ZNNIV SI 6 07119904202
06 Self-locking hex nut M6 4 07129900191 $0.38 ENDED
06 Hex nut M6-8-ZNS3 4 07129904876 $0.16
06 Hex nut M6-8-ZNNIV SI 4 07129905817
07 Bracket left 1 63142300073 $6.08
07 Bracket right 1 63142300074 $6.08
08 Body nut 2 12/1996 63171368008 $0.53 ENDED
08 C-clip nut 2 07146955207 $0.29
09 Fillister head self-tapping screw ST4,8X16-Z2 2 12/1996 07119907975 $0.56 ENDED
09 Fillister head self-tapping screw ST4,8X16 2 07147137416 $0.20
Notes
  • ENDED = the part has been discontinued (no longer available).
