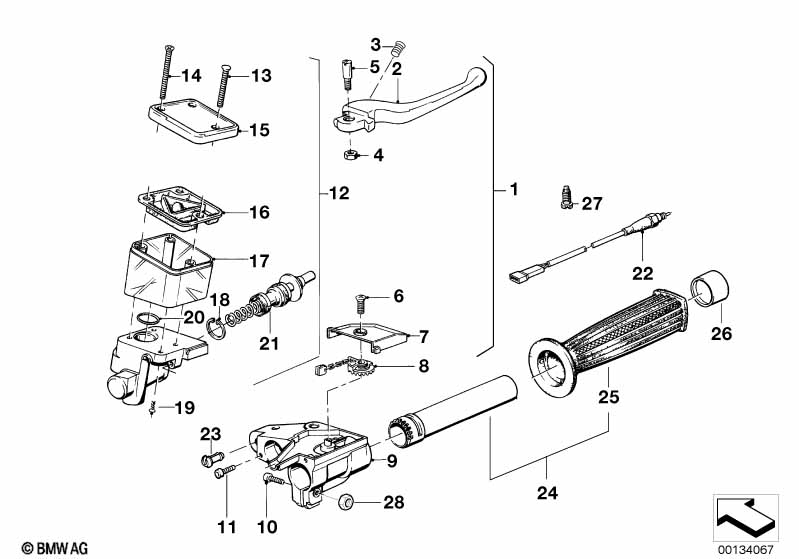

K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 RT (0565,0573) Handle unit, right

Handle unit, right
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Anti block system (ABS)

=Yes
01 Handle unit, right D=13MM/ABS 1 32722310741 $348.62 +core
02 Hand lever right 1 32722310112 $70.04 +core, SI 341790558
03 Screw 1 32722310113 $5.45
04 Nut, self-locking M6 1 32721238382 $2.61 ENDED
05 Screw M6 1 32721451749 $5.37
06 Screw 1 32721454245 $3.39
07 Cover 1 32721457037 $28.74
08 Cam disc 1 32721457036 $28.86
09 Housing 1 32721451734 $100.25 +core
10 Countersunk head screw M6X20 1 01/1993 32722311502 $2.03
11 Fillister-head screw M5X20 1 32721451987 $1.74
12 Cylinder with piston D=13MM 1 32722310748 $253.68 +core
13 Countersunk head screw M5X45 1 07119928128 $0.87
14 Countersunk head screw M5X55 2 07119928129 $1.77
15 Cover 1 32721454944 $12.83
16 Rubber boot 1 32721451742 $13.31
17 Container 1 32721451746 $20.58
18 Lock Ring 17X1 1 07119934620 $1.29
19 Screw 1 32721242625 $0.84
20 O-ring 1 32721242624 $4.09
22 Switch 1 61311459569 $25.06 +core
23 Support 1 32721451622 $4.93
24 Throttle grip 1 32721454129 $43.92
25 Handle right 1 32721237812 $12.56 +core
27 Locking bolt 1 32721454414 $12.61
28 Nut 1 01/1993 32722311141 $2.06
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
  • ENDED = the part has been discontinued (no longer available).
