K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 85 (0562,0571) Rear brake master cylinder

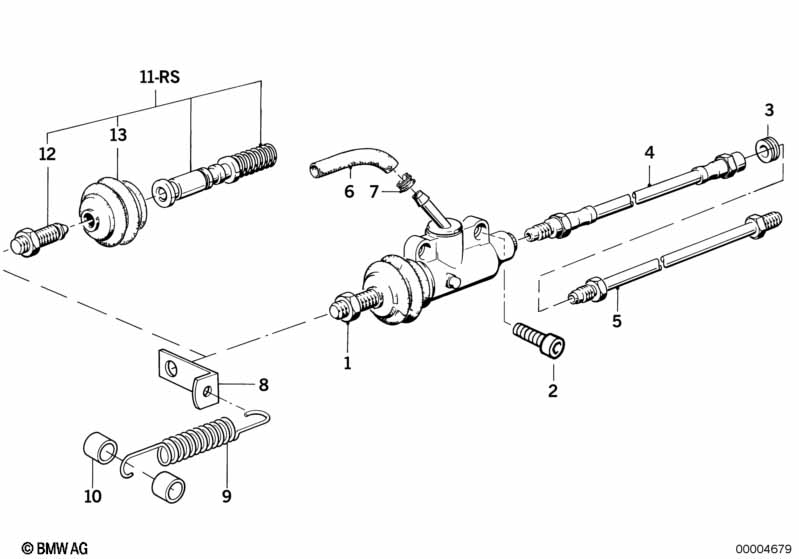

Rear brake master cylinder
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Brake master cylinder D=12MM MAGURA 1 08/1990 34311458142 $200.86 +core
02 Fillister-head screw M6X16 2 08/1990 34311451985 $1.13
03 Grommet 1 08/1990 34322302310 $2.80
03 Grommet 1 08/1990 34322310917 $2.80
04 Brake hose L=370MM 1 12/1991 34322310962 $73.58 +core
06 Hose 1 08/1990 34321457880 $6.86
07 Hose clamp D=12,3MM 2 08/1990 17111460922 $2.23
08 Support 1 08/1990 35211454375 $1.87
09 Tension spring 1 08/1990 35211457049 $14.80
11 Repair kit brake master cylinder D=12MM MAGURA 1 08/1990 34312311064 $87.89 +core
12 Adjuster MAGURA 1 08/1990 34311451885 $8.51
13 Rubber boot MAGURA 1 08/1990 34311454435 $10.69 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
