K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 S (0563,0572) Output shaft

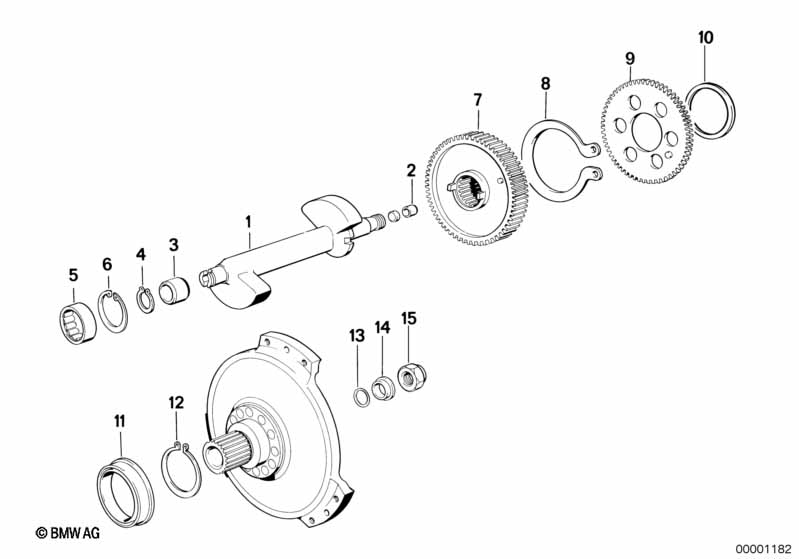

Output shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Output shaft 1 11211460560 $340.58
02 Bush 6X12X12 1 11211461539 $14.61
03 Inner bearing ring 22X26X2,0 1 11211460370 $40.54
04 Snap ring D=22MM 1 11211460373 $0.81
05 Needle bearing 26X34X16 1 11211460376 $17.48
06 Snap ring D=34MM 1 11211460379 $1.87
07 Gear wheel 1 11211461608 $342.41 +core
08 Spring 1 11211460709 $6.89
09 Idler 1 11211461085 $193.14 +core
10 Shim 1,0 1 11211461787 $12.52
10 Shim 1,15 1 11211461788 $12.52
10 Shim 1,3 1 11211461789 $12.52
10 Shim 1,45 1 11211461790 $12.52
11 Grooved ball bearing 83,5X50X16 1 11211465278 $103.35 +core
12 Lock Ring 50X2 1 07119934250 $1.80
12 Lock Ring 1 11211461755 $2.61
13 O-ring 19X4 1 11211460467
14 Compression ring 1 11211460696 $6.03
15 Hex nut M20X1,5 1 11211460673
Notes
  • +core = plus core charge (possibility of a return of the old part)
