K569 (K 75, K 75 C, K 75 S, K 75 RT) K 75 RT (0565,0573) 5 speed transmission-output shaft

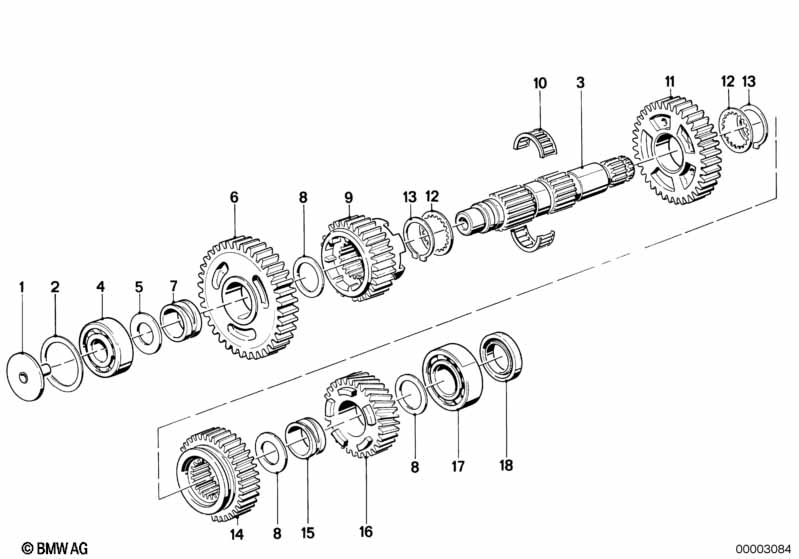

5 speed transmission-output shaft
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil guide 1 23111451014 $5.77 ENDED
02 Shim 37X47X0,35 1 23111341431 $9.78
02 Shim 37X47X0,45 1 23111341432 $9.78
02 Shim 37X47X0,55 1 23111341433 $9.78
02 Shim 37X47X0,30 1 23111451138 $9.78
02 Shim 37X47X0,40 1 23111451139 $9.78
02 Shim 37X47X0,50 1 23111451140 $9.78
03 Output shaft 1 23211457195 ENDED, +core
04 Grooved ball bearing 47X20X14 1 23121451164 $44.51 ENDED, +core
04 Grooved ball bearing 47X20X14 1 23121451080 +core
04 Grooved ball bearing 47X20X14 1 23121451080 +core
05 Shim 1 23211451145 $10.59
06 Gear wheel 1st gear 1 23211451079 $311.22 +core
07 Bush 1 23211451078 $82.69
08 Shim 25X35X2,0 3 23211451144 $15.30
08 Shim 25X35X1,9 1 23211451902 $14.84
08 Shim 25X35X1,8 1 23211451903 $14.84
08 Shim 25X35X1,7 1 23211451904 $14.84
08 Shim 25X35X1,6 1 23211451905 $14.84
09 Gear wheel 4th gear 1 23211451077 $373.45 ENDED, +core
10 Needle cage 27X33X17 1 23311451898 $30.26
11 Gear wheel, 2nd gear 1 23211451071 $293.44 +core
12 Washer 2 23211451072 $4.07
13 Lock Ring 31X1,5 2 23211451154 $3.33
14 Gear wheel 3rd gear 1 23211451073 $322.32 ENDED, +core
15 Bush 1 23211451074 $82.69
16 Gear wheel 5th gear Z=30 1 23211451075 +core
17 Grooved ball bearing 25X52X15 1 23121451900 $47.30 ENDED, +core
17 Grooved ball bearing 25X52X15 1 23121451895
18 Shaft seal 25X40X7 1 08/1983 23121451152 $9.72 ENDED
18 Shaft seal 25X40X7 1 23121451024
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
