K40 (K 1200 S, K 1300 S) K 1200 S (0581,0591) Valves/Pipes of fuel injection system

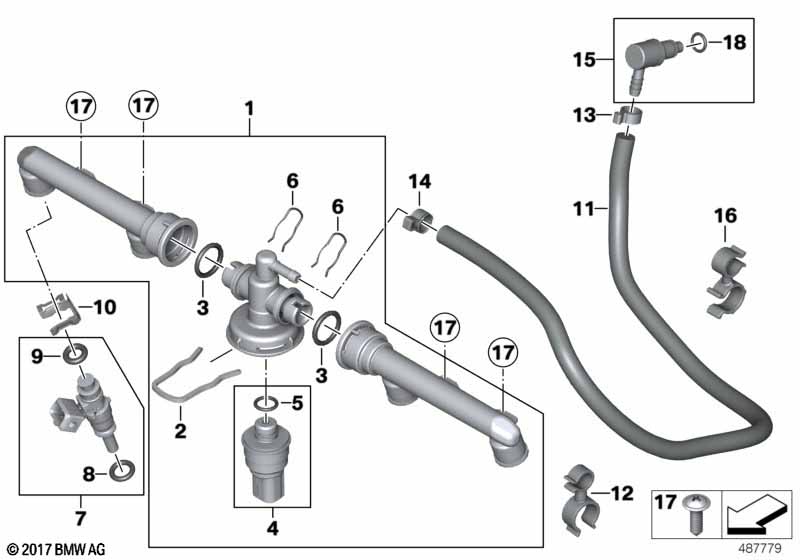

Valves/Pipes of fuel injection system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Injection rail 1 13537671546 $341.06 +core
02 Clamping spring 1 13531341694 $4.84
03 O-ring 16X3 2 13537671545 $2.60
04 Fuel pressure sensor 1 13537694579 $175.46 +core, SI 10/2008
05 O-ring 9,25X1,7 1 13537688284 $2.67
06 Spring clip 2 13537671758 $5.45
07 Injection valve 4 13617677017 $153.50 +core
08 O-ring 8,3X3,05 4 13647675557 $3.10
09 O-ring 7,52X3,51 4 13641437476
10 Spring clip 4 13537688795 $3.96
Length 550 mm
11 Hose running meter 6X11 1 13547709426 $31.58 +core
12 Hose clamp 1 11617525471
13 Hose clamp 12,5-14,5MM 1 13317671344 $2.90
14 Hose clamp 11,1-13,1 1 11731277848 $2.02
15 Quick-release coupling 90° 1 16117666735 $22.01
16 Hose clamp 1 13311278232 $1.73
17 Fillister head screw M5X14 4 46637657650 $2.03
18 O-ring 1 13537700797 $3.87
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • SI = Service Information
