K48 (K 1600 GT, K 1600 GTL) K 1600 GTL (0602, 0612) Clutch - single parts

Clutch - single parts

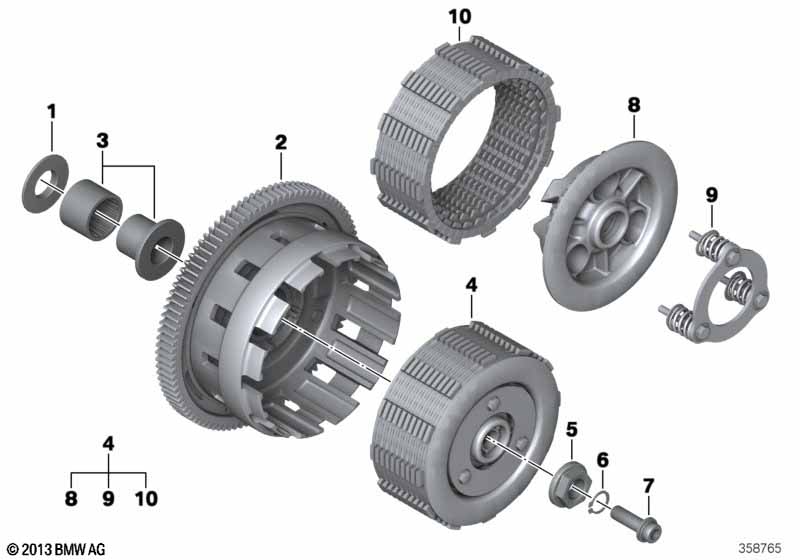

No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Stop disk 1 21218530429
Important!
Observe tightening specifications:
Tighten nut - loosen - retighten.
02 Couplng cap 1 21217722746 +core
03 Needle bearing/bushing 35X42X30 1 21218528635
04 Clutch package 1 21217726618 +core
Important!
Observe tightening specifications:
Tighten nut - loosen - retighten.
05 Collar nut M20X1,5 1 23007683409 $12.36
06 Lock Ring D=18X1,2 1 07119934120
07 Thrust adapter 1 21527724000
08 Pressure plate 1 21218527779 +core
09 Spring set 1 21218527778 +core
10 Lamellar package 1 21218527777 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
