K21 (R nineT) R nineT (0A06, 0A16) Fork brace, bottom/top

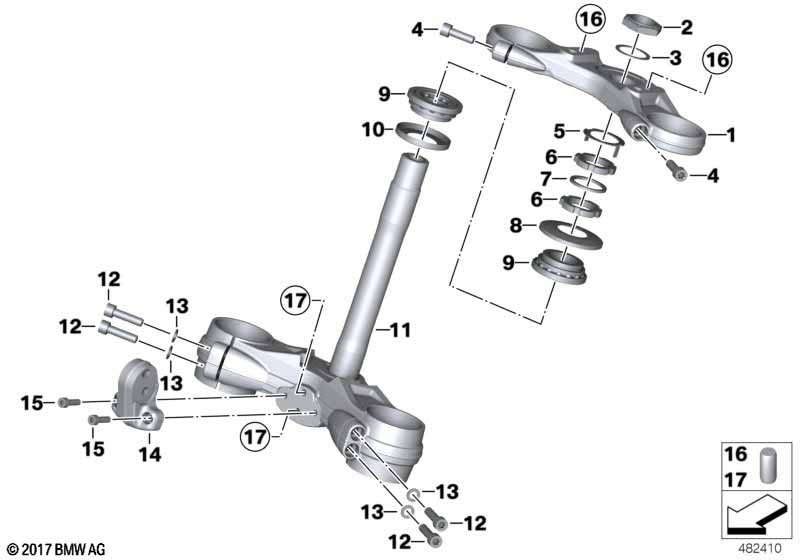

Fork brace, bottom/top
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Upper fork cross brace 1 31428538052
02 Nut 1 31427718386
only in conjunction with
-- Thread lock, medium-strength 10ML 1 83192210339
03 Washer 1 31427718387
04 ISA screw M8X25-8.8-ZNNIV 2 07129905768
05 Securing plate 1 31428532385
06 Groove nut 2 31427718388
07 Rubber washer 1 31428532384
08 Bearing cover 1 31428544702
09 Bearing 2 31427718392 +core
10 Bearing cover 1 31428544703
11 Lower fork cross brace 1 31428552873
Required for repair
-- Bearing 2 31427718392 +core
12 ISA screw M8X30-8.8-ZNNIV 4 07129907080
13 Washer 14X8,2X1 4 31428549834
14 Headlight bracket 1 31428538055
15 ISA screw M6X20-8.8-ZNNIV 2 07129901130 $0.38
16 Dowel pin 5M6X10 2 07119907038
17 Dowel pin M6X12 2 07119906022
Notes
  • +core = plus core charge (possibility of a return of the old part)
