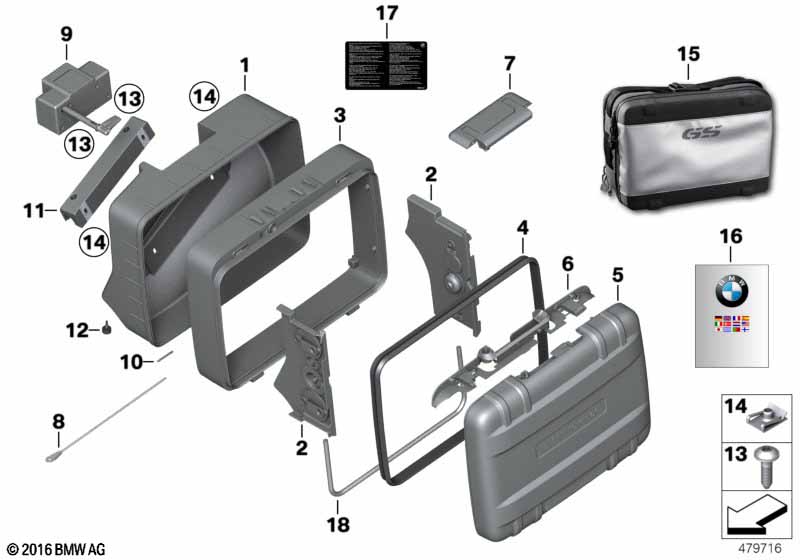

K70 (F 700 GS) F 700 GS (0B01, 0B11) Single parts, Vario case

Single parts, Vario case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Case bottom, left 1 71607704371 +core
01 Case bottom, right 1 71607704372 +core
02 Adjust plate rear left 1 71607704375 +core
02 Adjust plate rear right 1 71607704376 +core
02 Adjust plate front left 1 71607704377 $60.62 +core
02 Adjust plate front right 1 71607704378 $60.62 +core
03 Adjust frame 2 46547677402 $103.75
04 Gasket, case lid 2 46549457451
05 Case lid/topcase lid SW 2 71607704365 $160.74 +core
06 Lock strip 2 71607682774 $45.31
07 Carrier handle 2 71607659597 $24.06
08 Catch L=410MM 2 71607692098 $13.12
09 Topcase locking mechanism 2 71607704368 $97.50 +core
10 Hinge axle 4 71607660615 $5.44
11 Pad lower 2 71607704398 $40.00
12 Bump stop H=10 2 52537664664 $2.80
13 Torx-bolt for plastic material TS5X15 8 51137057671 $0.59
14 C-clip nut M6-ZNS3 8 51127070202 $1.00
15 Interior bag f right case / Topcase 1 71607687611 $171.54 +core
left
15 Interior bag f case 1 71607687610 $171.54 +core
16 Installation manual, Topcase, suitcase 1 01297707865 ENDED
17 Instruction notice, Payload 160KM/H, 8KG 1 51147716324
17 Sign maximum speed/payload VARIO-CASE 1 77418568809
18 Adjust-lever 1 46547677404
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
