K70 (F 700 GS) F 700 GS 17 (0B06, 0B16) Engine protection bar

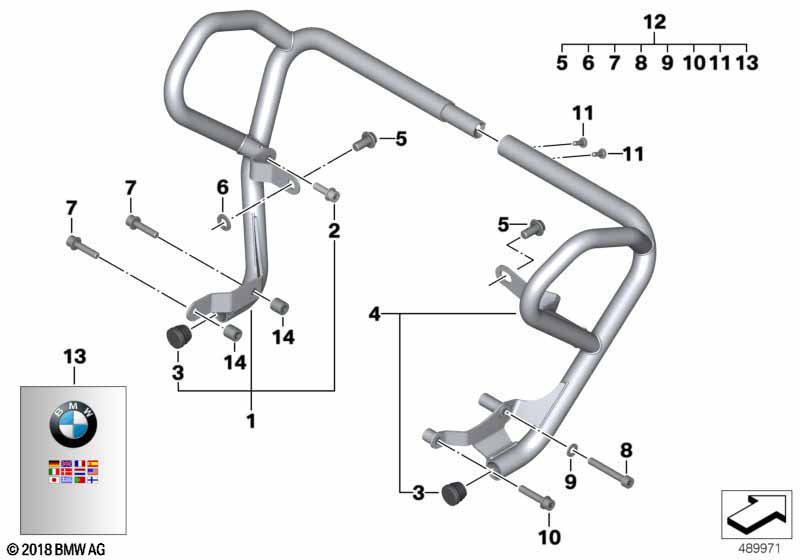

Engine protection bar
No. Description Supp. Qty  From   Up To  Part Number Price Notes
The daily update of the service
installation instructions can be printed
out from the Aftersales Assistance
Portal (ASAP).
01 Crash bar, left 1 71607699437 $237.40 ENDED, +core
01 Left engine protection bar 1 77148405683
02 ISA screw M8X25-U1-8.8 1 07129906138 $2.23
03 Plug 2 71607713031
The daily update of the service
installation instructions can be printed
out from the Aftersales Assistance
Portal (ASAP).
04 Crash bar, right 1 71607699438 $237.40 +core
04 Right engine protection bar 1 77148405684
05 Fillister-head screw M10X25 2 07129908598
07 ISA screw M8X40-10.9-MK 2 07129909298
08 Internal Torx screw with washer M8X55-U1-10.9 1 07129909400
10 ISA screw M8X40-10.9-MK 1 07129909298
11 Fillister head screw M5X14-A2-80-MK 2 46617713314
12 Set attachment parts safety bar 1 77148567703
14 Bush H=15MM 2 46638549084
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
