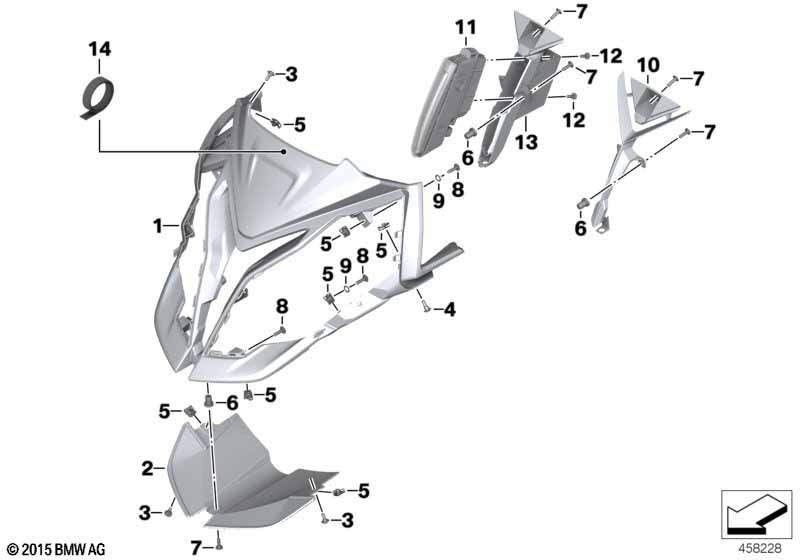

K49 (S 1000 XR) S 1000 XR (0D03, 0D13) Front panel
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| 01 | Front panel | 1 | 46637717042 | ||||||
| 02 | Cover, front fairing, lower | 1 | 46637717167 | ||||||
| 03 | Body screw with shoulder | M5X14,5-A2-70 | 6 | 46638521653 | |||||
| 04 | Body screw with shoulder | M5X17,5-A2-70 | 2 | 46638521654 | |||||
| 05 | C-clip nut, self-locking | M5 | 8 | 46638532314 | |||||
| 06 | Blind rivet nut, flat headed | M5 | 4 | 46632347012 | $4.43 | ||||
| 07 | Body screw without shoulder | M5X20-A2-70 | 4 | 46638527780 | |||||
| 08 | Body screw without shoulder | M5X20-A2-70 | 6 | 46638527780 | |||||
| 09 | Washer | 5-200 HV-A2 | 4 | 07119903028 | $1.94 | ||||
| For vehicles with Daytime running lamps |
X202A=No |
||||||||
| 10 | Air inlet finisher | 1 | 46638556929 | ||||||
| For vehicles with Daytime running lamps |
X202A=Yes |
||||||||
| 11 | Daytime running lamps | 1 | 63178534877 | ||||||
| 12 | Fillister head screw | 5X16-ZNNI SI | 2 | 46637727426 | |||||
| 13 | Frame daytime running lights | 1 | 63128552995 | ||||||
| 14 | Adhesive tape | 1 | 51418170727 | ||||||
