K69 (S 1000 XR) S 1000 XR (0E41, 0E43) Set of hand protectors

Set of hand protectors
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i The daily update of the service
installation instructions can be printed
out from the Aftersales Assistance
Portal (ASAP).

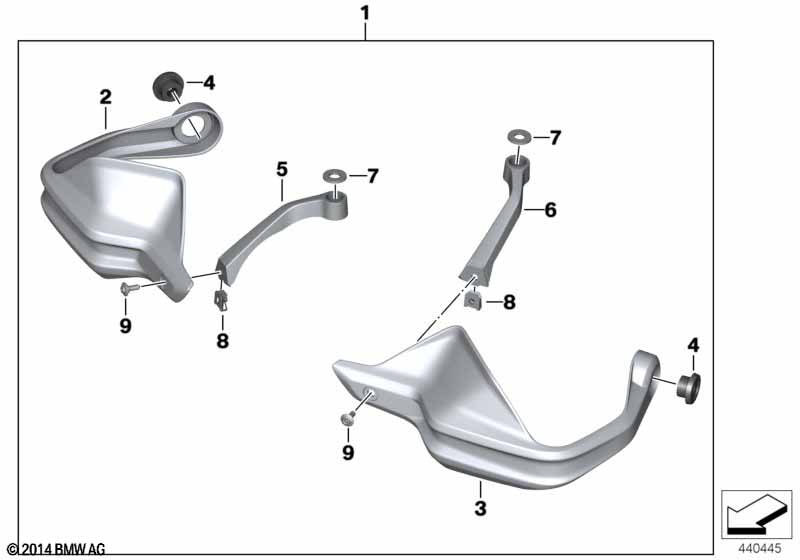

01 Set of hand protectors 1 77328553967 EBA 8561490
02 Hand protector right 1 46638523432
03 Hand protector left 1 46638523431
04 Bush 2 46638523435
05 Bracket, hand protector right 1 46637717154
06 Bracket, hand protector left 1 46637717153
07 Washer 2 46638526273
08 C-clip nut, self-locking M5 2 46638532314
09 Body screw with shoulder M5X14,5-A2-70 2 46638521653
Notes
  • EBA = Einbauanleitung (Installation instructions)
