K02 (G 310 GS) G 310 GS (0G02, 0G12) Side stand Technical Campaign

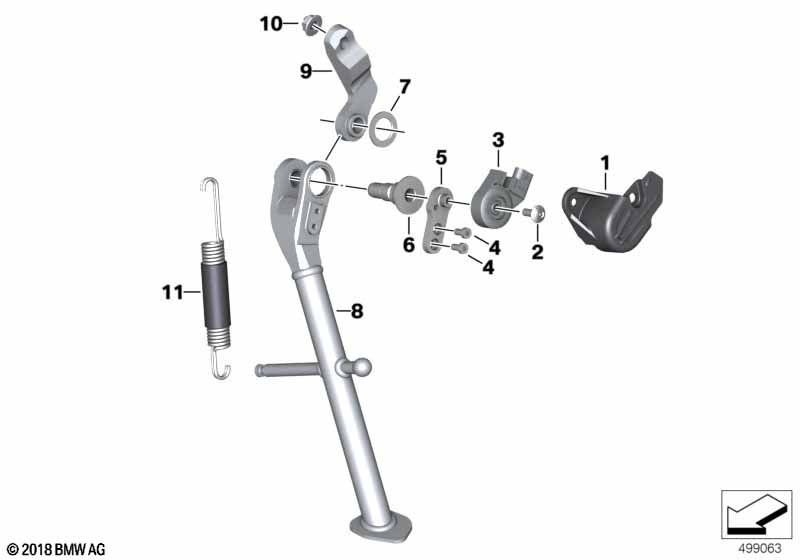

Side stand Technical Campaign
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover for side-stand switch 1 46539457238
02 Body screw without shoulder M6X16 A2 MK 1 61318547664
03 Switch, kickstand 1 61328535708
04 ISA screw M5X10 2 07129904491
05 Adapter 1 46539457241
06 Side-support screw 1 46539457226
07 Washer 1 46539457230
With plain bearing
08 Side stand 1 46539457861
09 Supporting bracket 1 46539457243
10 Hexagon nut with collar M8-10 ZNS3 1 31306798572
11 Spring with grommet 1 46538560061
