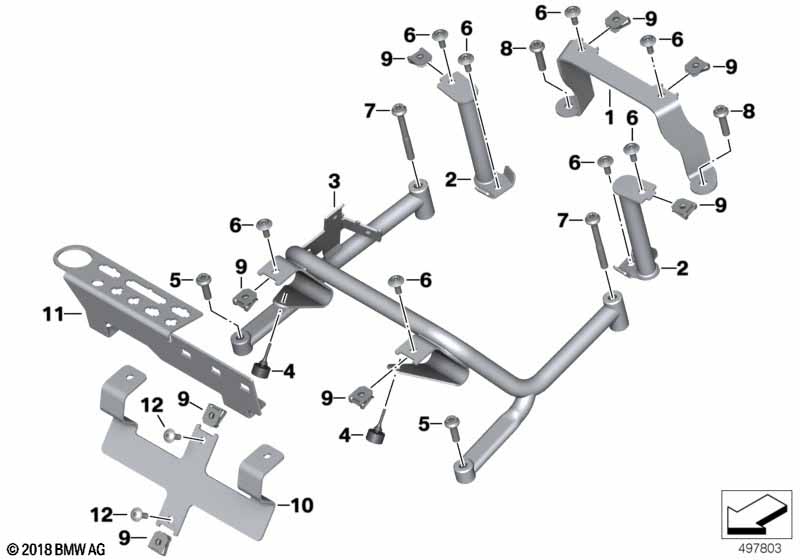

K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Holder for radio transceiver box
Sponsored links
Sponsored links
| No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
|---|---|---|---|---|---|---|---|---|---|
| i | For vehicles with Single seat with radio compartment, low or Single seat with 2-way radio module |
X245A=Yes X642A=Yes |
|||||||
| 01 | Bracket for radio box, rear | 1 | 46548548472 | ||||||
| 02 | Bracket center | 2 | 46548548471 | ||||||
| 03 | Bracket for radio box, front | 1 | 46548548470 | ||||||
| 04 | Support | D=14MM | 2 | 52537677424 | $10.24 | ||||
| 05 | Fillister-head screw | M6X20-8-8 MK | 2 | 07129908076 | |||||
| 06 | Body screw without shoulder | M5X14-A2-70 | 8 | 46638534938 | |||||
| 07 | Fillister-head screw | M6X55 | 2 | 07129907396 | |||||
| 08 | ISA screw | M6X25-8.8-ZNNIV | 2 | 07129907401 | |||||
| 09 | C-clip nut, self-locking | M5 | X | 46638532314 | |||||
| 10 | Bracket control unit RDC | 1 | 46548548587 | ||||||
| 11 | Plug-in connection bracket | 1 | 61138548530 | ||||||
| 12 | Fillister head screw | M5X14 | 2 | 46637657650 | $2.03 | ||||
