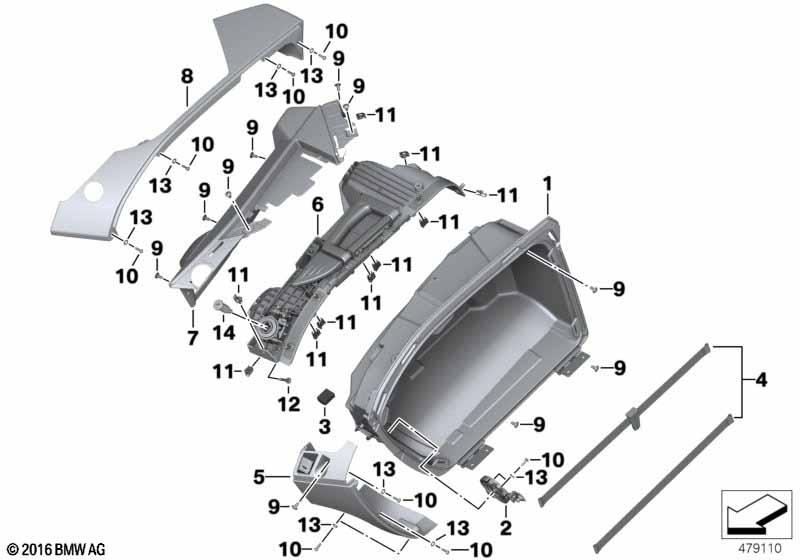

K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Case, lower part

Case, lower part
No. Description Supp. Qty  From   Up To  Part Number Price Notes
with Pos. 6 and 7
01 Case bottom, left 1 46548550095
only applies to
01 Case bottom, right 1 46548550096
only applies to
-- Lock cylinder with VIN code X 51257681200 $53.00 +core
-- Vehicle key (code) X 51257681202 $32.34
02 Cover holder, left 1 46548529461
only applies to
02 Cover holder, right 1 46548529462
only applies to
-- Fillister head screw 4,0X14 X 52537653614 $2.61
03 Bump stop 1 46547683293 $6.89
04 Rubber-fastener 1 46547704244 $24.10
05 Trim, case floor, lower left 1 46548520657
only applies to
05 Trim, case floor, lower right 1 46548520658
only applies to
-- Fillister head screw M5X12-A2-80 X 06327651211 $0.96
-- Fillister head screw 4,0X14 X 52537653614 $2.61
06 Locking mechanism, left 1 46547709499 +core
only applies to
06 Locking mechanism, right 1 46547709500 +core
only applies to
-- Fillister head screw M5X12-A2-80 X 06327651211 $0.96
-- Oval head screw M5X25 X 63137655661 $2.58
black
grained
07 Cover, trunk floor, upper left 1 46547727389
only applies to
07 Cover, trunk floor, upper right 1 46547727390
only applies to
-- Fillister head screw M5X12-A2-80 X 06327651211 $0.96
-- Expanding rivet X 51718226190 $0.29
08 Cover, trunk floor, upper left 1 46548520659
08 Cover, case floor, upper right 1 46548520660
09 Fillister head screw M5X12-A2-80 11 06327651211 $0.96
10 Fillister head screw 4,0X14 10 52537653614 $2.61
11 C-clip nut, self-locking M5 12 46637694548 $1.62
12 Oval head screw M5X25 1 63137655661 $2.58
14 Lock cylinder with VIN code 1 51257681200 $53.00 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
