K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Luggage grid

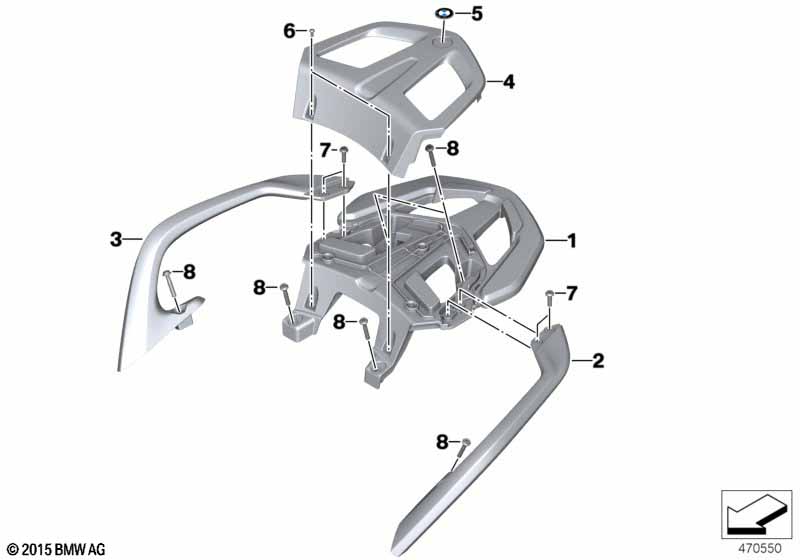

Luggage grid
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Additional battery

X537A=No
01 Luggage rack, lower section 1 46548520650
02 Grab handle, left WHITE-ALU 3 1 46548548023
03 Handle, right WHITE-ALU 3 1 46548548024
04 Luggage rack, upper section WHITE-ALU 3 1 46548548025
05 Badge D=27MM 1 51142328447 $9.87 +core
06 Self tapping screw K40X12 2 07147698893 $0.55
07 Fillister-head screw M6X20-8-8 MK 4 07129908076
08 Fillister-head screw M6X35-8.8-MK-ZN 6 46549908616
Notes
  • +core = plus core charge (possibility of a return of the old part)
