K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Air-discharge duct

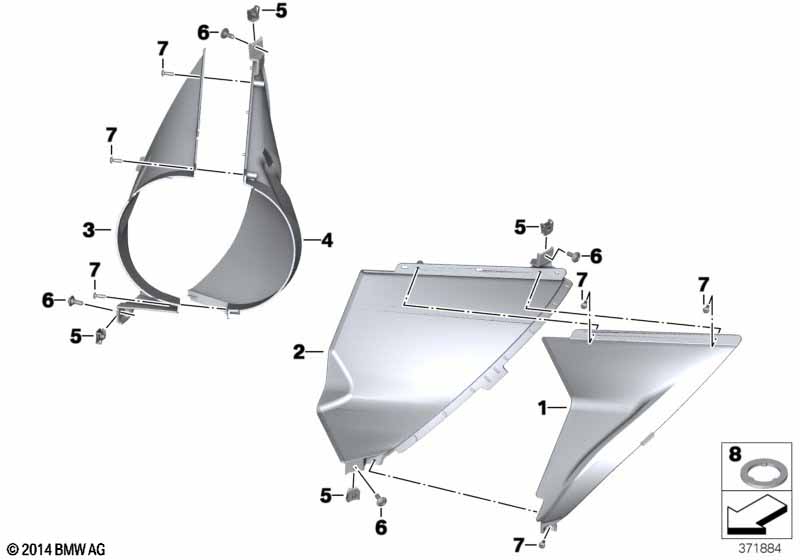

Air-discharge duct
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Air-discharge duct, outer left 1 46638529331
02 Air-discharge duct, inner left 1 46638529325
03 Air-discharge duct, outer right 1 46638529332
04 Air-discharge duct, inner right 1 46638529326
05 C-clip nut, self-locking M5 4 46638532314
06 Body screw with shoulder M5X14,5-A2-70 4 46638521653
07 Self tapping screw K40X12 6 07147698893 $0.55
08 Plastic washer M5X12,5X0,5 X 46638521659
