K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Side trim panel

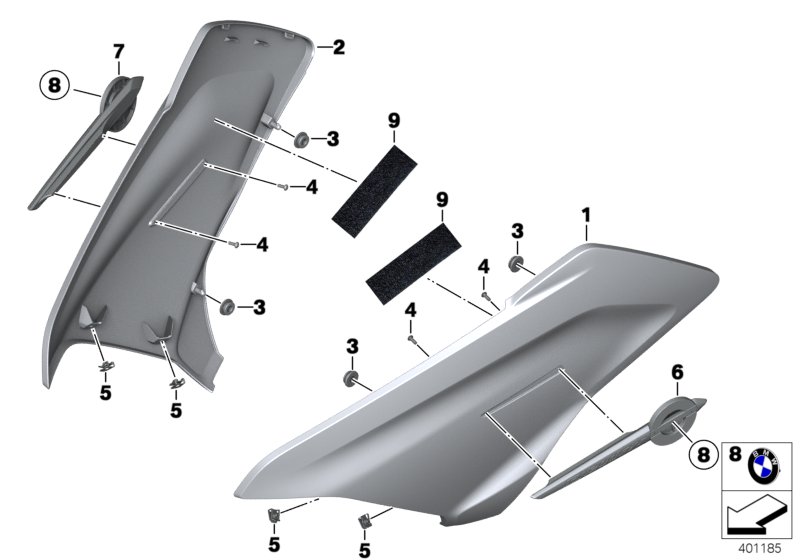

Side trim panel
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Side cover, primed, left 1 09/2016 46638567815
01 Lateral trim panel, left ROHTEIL / BLANK 1 09/2016 46638566227
02 Side cover, primed, right 1 09/2016 46638567816
02 Lateral trim panel, right ROHTEIL / BLANK 1 09/2016 46638566228
03 Grommet 4 46638527151
04 Self tapping screw K40X12 4 07147698893 $0.55
05 C-clip nut, self-locking M5 4 46638532314
06 Plaque holder, left 1 46638382823
07 Plaque holder, right 1 46638382824
08 Badge D=70MM 2 51147721222 $25.18 +core
09 Hook&loop fastener 25X40MM 2 46639444373
Notes
  • +core = plus core charge (possibility of a return of the old part)
