K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Footrest, front

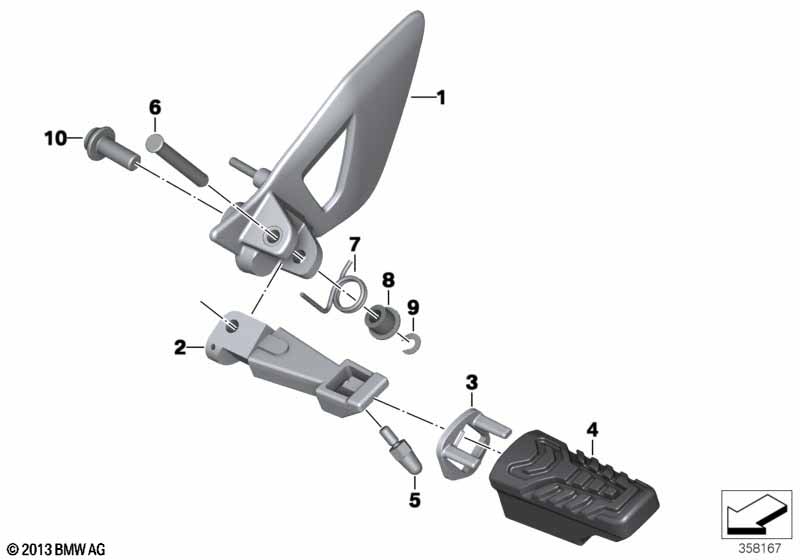

Footrest, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Footpeg plate right 1 46718560382
01 Footrest plate, left 1 46718560383
02 Footrest, left 1 46712330763 +core
02 Footrest, right 1 46712330764 +core
03 Thrust washer, left 1 46717687107 $3.35
03 Thrust washer, right 1 46717687108 $3.35
04 Footrest rubber 2 46718544486
05 Stopper L=32MM MK 2 46712330765 $7.08
06 Pin 8X56,5 2 46717664093 $14.09
only in conjunction with
-- Lubricant Staburags NBU 30 PTM 50G 2 07559056992
07 Retainer spring left 1 46718520415
07 Retainer spring right 1 46718520416
08 Sleeve 2 46711451632 $2.71
09 Securing clip 6,0 2 07146892696
10 Fillister-head screw M10X25 2 07129908279
Notes
  • +core = plus core charge (possibility of a return of the old part)
