K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Rear footrests

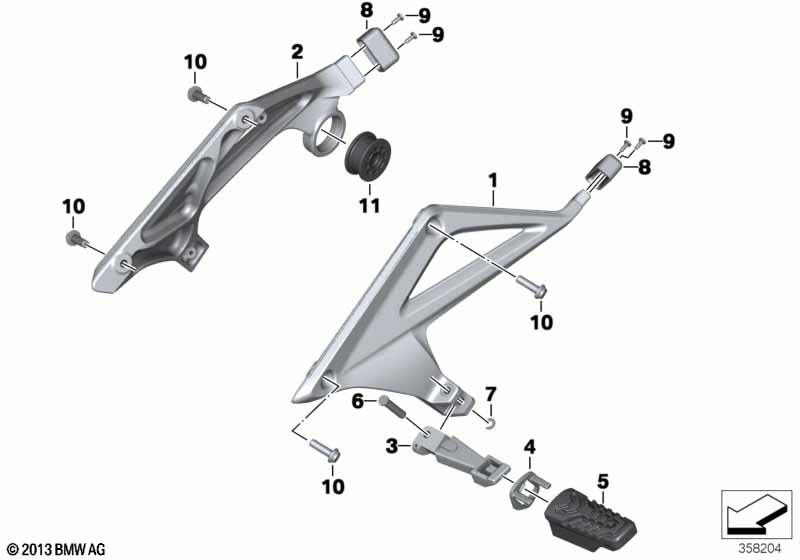

Rear footrests
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Single seat with radio compartment, low
and
Single seat with 2-way radio module
and
Rear safety bar

X245A=No

X642A=No

X674A=No
01 Footrest plate, rear left 1 46718534789
02 Footrest plate, rear right 1 46718534790
03 Footrest, rear left 1 46712310403 $40.75 +core
03 Footrest, rear right 1 46712310404 $32.60 +core
04 Thrust washer, left 1 46717687107 $3.35
04 Thrust washer, right 1 46717687108 $3.35
05 Footrest rubber 2 46718544486
06 Pin L=42MM 2 46717680530 $11.64
only in conjunction with
-- Lubricant Staburags NBU 30 PTM 50G 2 07559056992
07 Securing clip 6,0 2 07146892696
08 Cap 2 46717674211 $5.44
09 Countersunk screw M4X12 4 07119909614
10 Fillister-head screw M8X25-8.8-ZNNIV 4 07129907382
11 Rubber insulation element 1 18517728002
Notes
  • +core = plus core charge (possibility of a return of the old part)
