K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Storage compartment, left

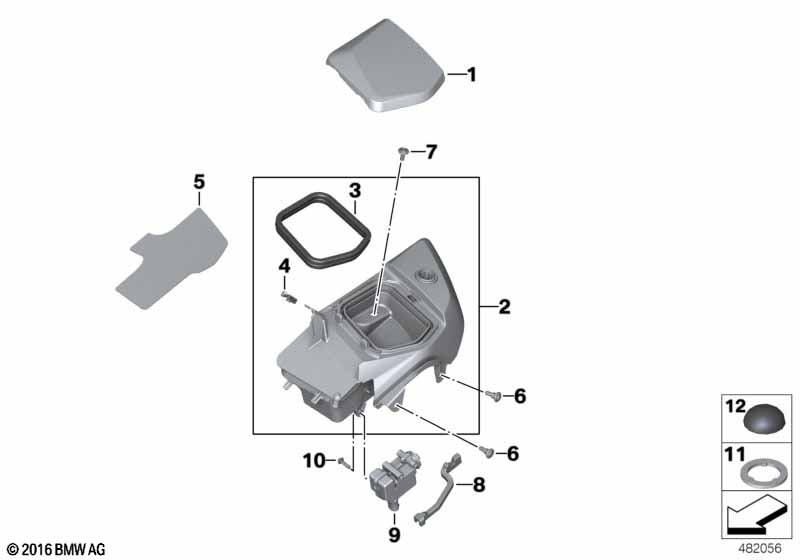

Storage compartment, left
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Seal flap, left 1 46638544949
02 Storage bin lower section, left 1 46638544957
03 Seal, storage bin, left 1 46638544945
04 C-clip nut, self-locking M5 1 46638532314
05 Foam insert, left 1 46638552087
06 Body screw with shoulder M5X17,5-A2-70 2 46638521654
07 Body screw with shoulder M5X14,5-A2-70 1 46638521653
For vehicles with
Central locking system

X417A=Yes
08 Linkage for central locking, left 1 46638534875
09 Actuator 1 67118529514
10 Fillister head screw 4X15 1 54107055524 $0.22
11 Plastic washer M5X12,5X0,5 X 46638521659
12 Rubber buffer 1 54347166771 $0.44
