K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Storage compartment, right

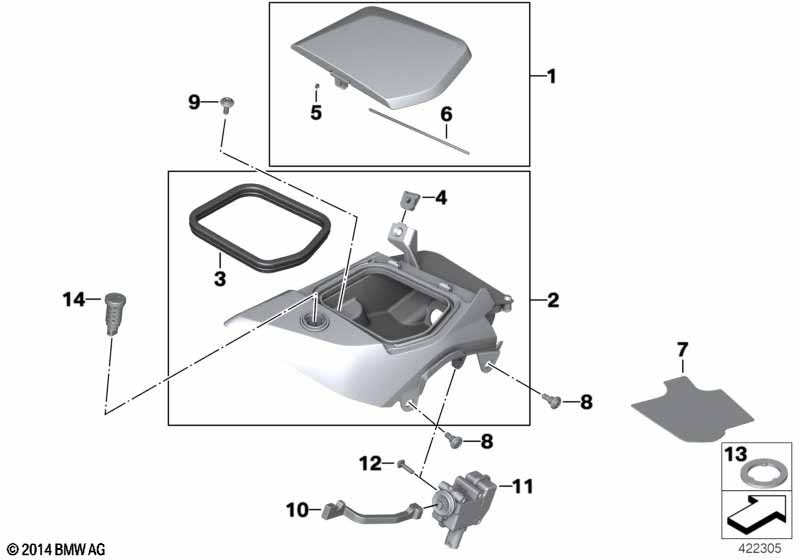

Storage compartment, right
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Audiosystem ECE
or
Audio system US

X268A=Yes

X270A=Yes
01 Seal flap, right 1 46638544950
02 Storage bin lower section, right 1 46638544958
03 Seal for storage bin, right 1 46638544946
04 C-clip nut, self-locking M5 1 46638532314
05 Spring 2 46638534872
06 Part not available separately 1 00000000000
07 Foam insert, right 1 46638549852
08 Body screw with shoulder M5X17,5-A2-70 2 46638521654
09 Body screw with shoulder M5X14,5-A2-70 1 46638521653
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=Yes

X270A=Yes

X417A=Yes
10 Linkage for central locking, right 1 46638534876
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=Yes

X270A=No

X417A=Yes
10 Linkage for central locking, right 1 46638534876
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=No

X270A=Yes

X417A=Yes
10 Linkage for central locking, right 1 46638534876
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=Yes

X270A=Yes

X417A=Yes
11 Actuator 1 67118529514
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=Yes

X270A=No

X417A=Yes
11 Actuator 1 67118529514
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=No

X270A=Yes

X417A=Yes
11 Actuator 1 67118529514
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=Yes

X270A=Yes

X417A=Yes
12 Fillister head screw 4X15 1 54107055524 $0.22
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=Yes

X270A=No

X417A=Yes
12 Fillister head screw 4X15 1 54107055524 $0.22
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=No

X270A=Yes

X417A=Yes
12 Fillister head screw 4X15 1 54107055524 $0.22
13 Plastic washer M5X12,5X0,5 X 46638521659
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=Yes

X270A=Yes

X417A=Yes
14 Lock cylinder with VIN code 1 51257681200 $53.00 +core
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=Yes

X270A=No

X417A=Yes
14 Lock cylinder with VIN code 1 51257681200 $53.00 +core
For vehicles with
Audiosystem ECE
and
Audio system US
and
Central locking system

X268A=No

X270A=Yes

X417A=Yes
14 Lock cylinder with VIN code 1 51257681200 $53.00 +core
Notes
  • +core = plus core charge (possibility of a return of the old part)
