K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Trim bracket, front

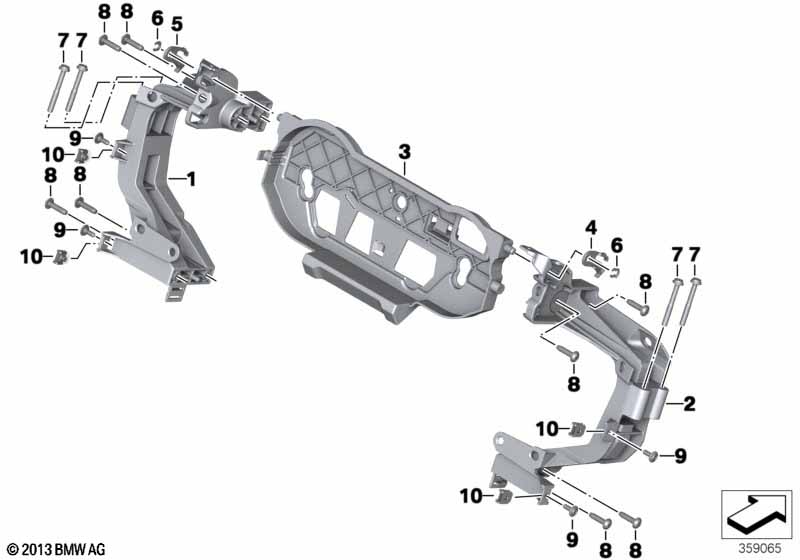

Trim bracket, front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Mirror mount, left 1 46638529397
02 MIrror mount, right 1 46638529398
03 Bracket f instrument cluster 1 46638529392
04 Left gate 1 46638534857
05 Right gate 1 46638534858
06 Securing clip ZNFE SW 2 07129906498 $1.87
07 Fillister-head screw M6X50-8.8-ZNNIV 4 07129907532
08 Oval-head screw, self-tapping M6X25-ZNNIV-SI 8 07149166528
09 Body screw with shoulder M5X14,5-A2-70 4 46638521653
10 C-clip nut, self-locking M5 4 46638532314
