K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Trim cover upper section

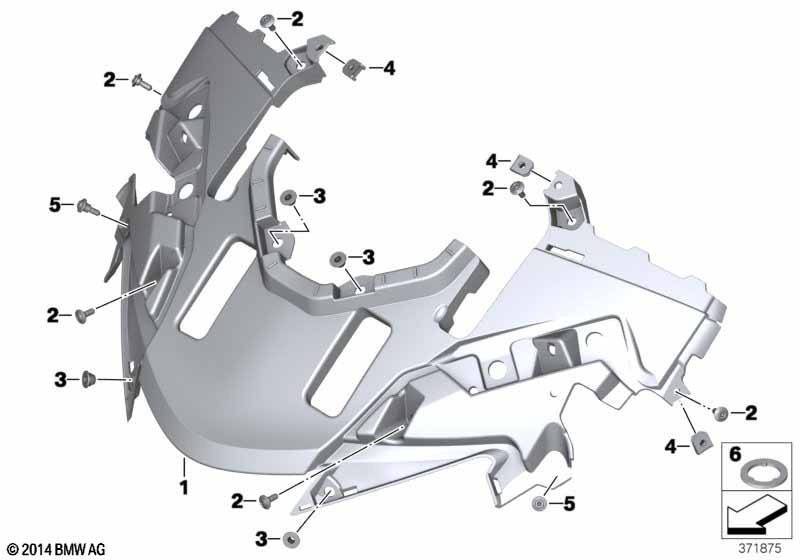

Trim cover upper section
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Trim cover upper section 1 46637728786
02 Body screw with shoulder M5X14,5-A2-70 6 46638521653
03 Grommet 4 46638532168
04 C-clip nut, self-locking M5 4 46638532314
05 Body screw with shoulder M5X17,5-A2-70 2 46638521654
06 Plastic washer M5X12,5X0,5 X 46638521659
