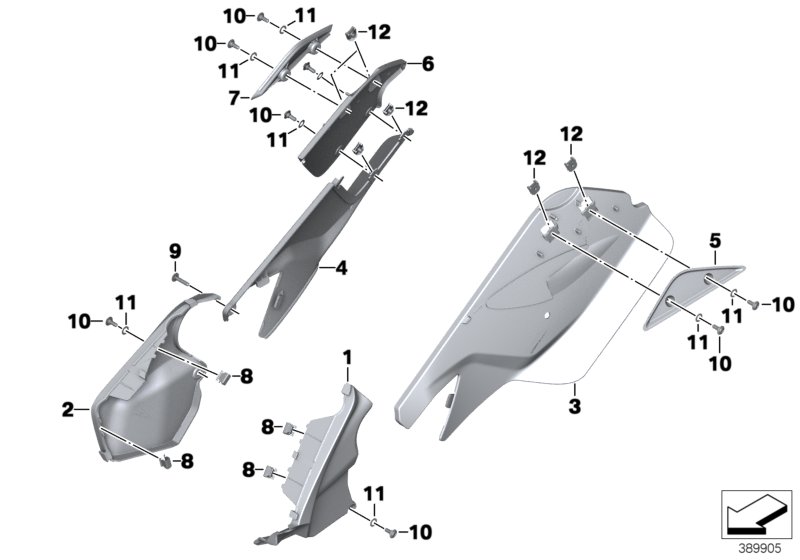

K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Weather protection

Weather protection
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Weather protection

X649A=Yes
01 Trim, left front 1 46638548477
02 Trim cover, front right 1 46638548610
03 Left center covering 1 46638548481
04 Right center covering 1 46638548480
05 Covering, rear left 1 46638548483
06 Covering rear right 1 46638548482
07 Covering, rear right 1 46638548484
08 Clamp 4 61138545036
09 Body screw without shoulder M5X25 4 46638534939
10 Body screw with shoulder M5X14,5-A2-70 8 46638521653
11 Plastic washer M5X12,5X0,5 8 46638521659
12 C-clip nut, self-locking M5 6 46638532314
