K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Tail trim

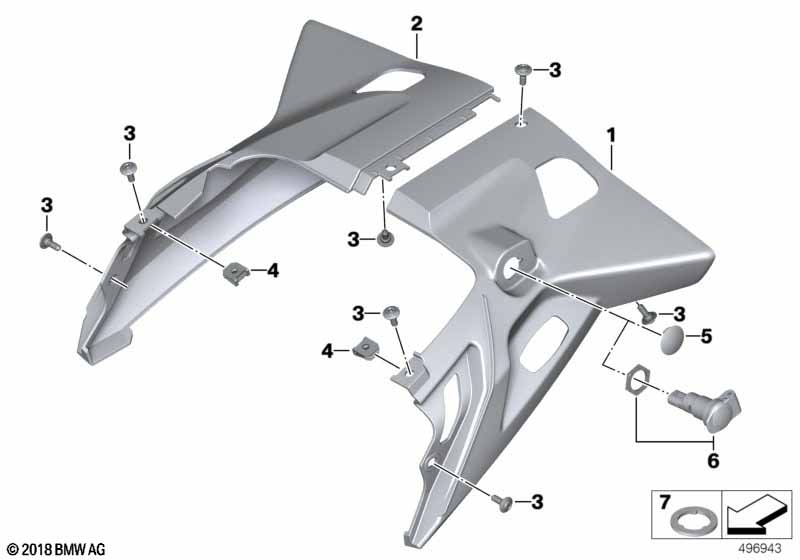

Tail trim
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i For vehicles with
Additional battery

X537A=Yes
01 Rear section, left 1 46638548489
02 Rear section, right 1 46638548490
03 Body screw with shoulder M5X14,5-A2-70 7 46638521653
04 C-clip nut, self-locking M5 2 46638532314
05 Plug 1 12131459529 $0.87
06 Plug-in socket 1 61347714741 +core
07 Plastic washer M5X12,5X0,5 X 46638521659
Notes
  • +core = plus core charge (possibility of a return of the old part)
