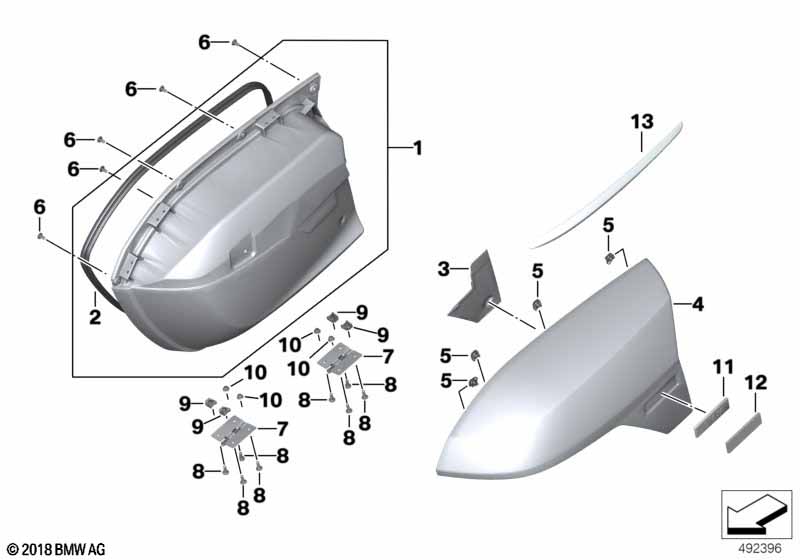

K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Case lid at lowe part of case

Case lid at lowe part of case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover with gasket, left 1 46548532049 +core
01 Cover with gasket, right 1 46548532050 +core
02 Gasket, case lid 1 46547728991
03 Cover, black, left 1 46547727411
03 Trim cover, black, right 1 46547727412
04 Trim, trunk lid, left, primed 1 46548532489
04 Trim, trunk lid, right, primed 1 46548532490
05 Flat nut M5 5 46637721031
06 Fillister head screw M5X12-A2-80 5 06327651211 $0.96
07 Hinge 2 46547693120 $18.75
08 Binding head screw M5X16-A2-80 8 06327651212 $0.82
09 Flat nut M5 8 46637721031
10 Hex nut AM5-8-ZNS3 8 07129902975 $0.36
12 Rear reflector red 2 63147671349 $8.98 +core
For vehicles with
bright-yellow metallic
or
magma-red/titan-silver metallic
or
carbon-schwarz metallic

WN03=Yes

WN04=Yes

WN1K=Yes
13 Chrome molding for luggage case, left 1 51148545123
13 Chrome molding for luggage case, right 1 51148545124
For vehicles with
Option 719 stardust metallic
or
Option 719 blue planet met. / ivory
or
manhattan metallic

WH08=Yes

WH0D=Yes

WN2V=Yes
13 Chrome molding for luggage case, left 1 51148545123
13 Chrome molding for luggage case, right 1 51148545124
Notes
  • +core = plus core charge (possibility of a return of the old part)
