K52 (R 1200 RT, R 1250 RT) R 1250 RT 19 (0J61, 0J63) Knee cover

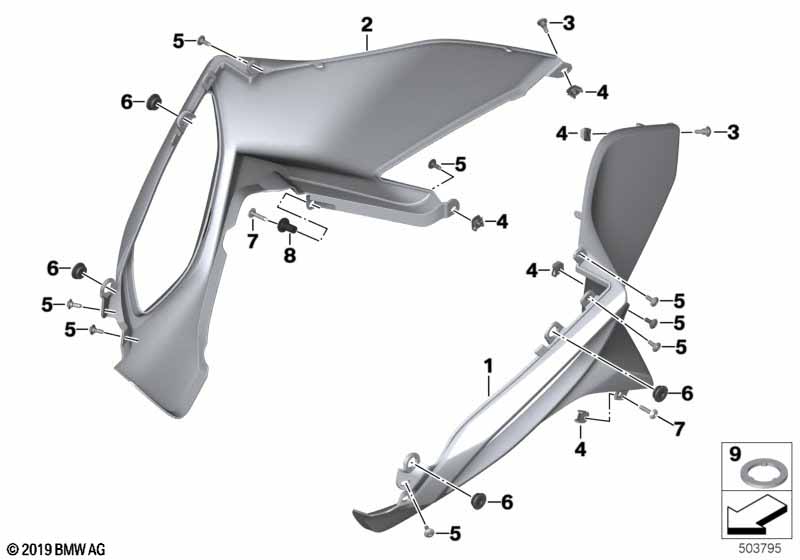

Knee cover
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Knee guard, primed, left 1 46638533569
01 Knee guard, left ROHTEIL / BLANK 1 46638533581
02 Knee guard, primed, right 1 46638533570
02 Knee guard, right ROHTEIL / BLANK 1 46638533582
03 Body screw with shoulder M5X17,5-A2-70 2 46638521654
04 C-clip nut, self-locking M5 X 46638532314
05 Body screw with shoulder M5X14,5-A2-70 9 46638521653
06 Grommet 4 46638527151
07 Body screw without shoulder M5X25 2 46638534939
08 Neoprene nut M5 1 07147335808
09 Plastic washer M5X12,5X0,5 X 46638521659
