3' E30 318i Timing case

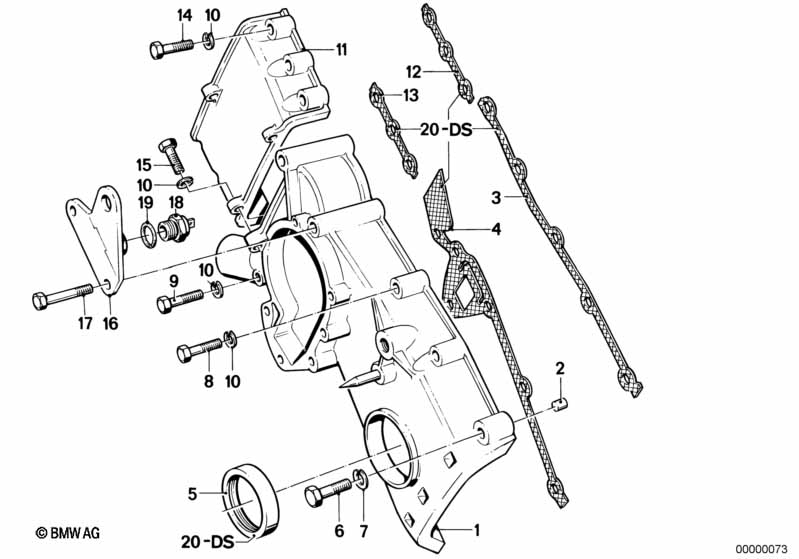

Timing case
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Cover 1 11141276440 $158.84
02 Dowel D=10,5MM 2 11121726238 $1.62
03 Gasket left asbesto-free 1 11141727981 $2.03
04 Gasket Asbestos Free 1 11141727980 $2.72
05 Shaft seal 35X55X12 1 11141709632 $11.43 ENDED
05 Shaft seal 35X55X12 1 11141709629
06 Hex bolt M8X35 2 07119913676 $0.36
07 Wave washer B8 2 06/1988 07119932095 $0.09 ENDED
07 Wave washer 2 07119904115 $0.09
08 Hex bolt M6X35 2 06/1988 07119901189 $0.60 ENDED
08 Hex bolt M6X35-8.8-ZNS3 2 07119902998 $0.38
09 Hex bolt M6X40 1 07119912310 $0.43
10 Wave washer B6-ZNS3 X 07119904496 $1.78 ENDED
10 Wave washer B6 X 07119932099 $0.38
11 Cover RÄDERKASTEN OBE 1 11140604100 $49.11
12 Gasket Asbestos Free 1 11141727978 $1.37
13 Gasket Asbestos Free 1 11141727979 $1.37
14 Hex bolt M6X35 4 06/1988 07119901189 $0.60 ENDED
14 Hex bolt M6X35-8.8-ZNS3 4 07119902998 $0.38
14 Hex bolt M6X40 2 07119912310 $0.43
15 Hex bolt M6X25 2 07119913589 $0.62
16 Hook 1 11141253736 ENDED
16 Hook 1 11141274102 $10.25 ENDED
17 Hex bolt M8X75 2 06/1988 07119912553 $2.42 ENDED
17 Hex bolt M8X75-8.8-ZNS3 2 07119906028
18 Temperature switch 1 12631279719
18 Temperature switch 0CEL 1 02/1985 12631279720 $13.42 ENDED
19 Gasket ring A14X18-CU 1 07119963201 $0.18
20 Asbestos-free gasket set cover 1 11141727986 $18.65
Notes
  • ENDED = the part has been discontinued (no longer available).
