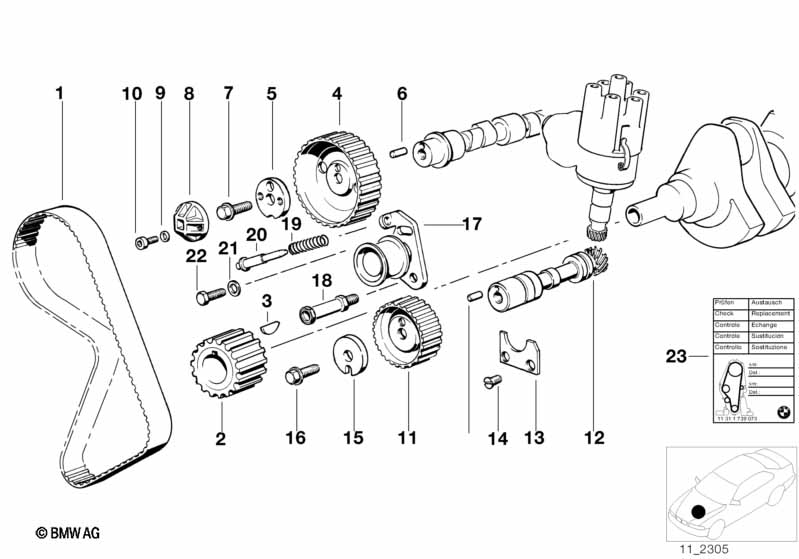

3' E30 320i Timing and valve train-tooth belt
Sponsored links

Sponsored links
No. | Description | Supp. | Qty | From | Up To | Part Number | Price | Notes | |
---|---|---|---|---|---|---|---|---|---|
01 | Tooth belt semicircular profile | Z=127 | 1 | 11/1985 | 11311713361 | $56.88 | ENDED | ||
only in conjunction with | |||||||||
01 | Tooth belt semicircular profile | Z=127 | 1 | 11/1985 | 11311711081 | ||||
only in conjunction with | |||||||||
-- | Adjusting pulley | 1 | 11/1985 | 11311711154 | |||||
01 | Tooth belt semicircular profile | Z=127 | 1 | 11/1985 | 11311713361 | $56.88 | ENDED | ||
01 | Tooth belt semicircular profile | Z=127 | 1 | 11/1985 | 11311711081 | ||||
02 | Gear wheel,tooth belt | 1 | 11211284940 | $84.25 | |||||
03 | Woodruff key | 5X6,5 | 2 | 07119951480 | $0.88 | ||||
04 | Gear wheel,tooth belt | SINTER | 1 | 12/1986 | 11311714988 | $54.67 | |||
only in conjunction with | |||||||||
-- | Lock bolt | M10X35 | 1 | 12/1986 | 11311714798 | $1.95 | |||
-- | Washer | O. LOCH | 1 | 12/1986 | 11311717180 | $1.10 | |||
-- | Washer | 1 | 12/1986 | 11311730610 | $4.62 | ||||
-- | Hex bolt | M18X1,5X65 | 1 | 12/1986 | 11231709037 | $8.04 | |||
04 | Gear wheel,tooth belt | SINTER | 1 | 12/1986 | 11311714988 | $54.67 | |||
For vehicles with National version Austria |
V013A=Yes |
||||||||
04 | Gear wheel,tooth belt | 1 | 11311278828 | ENDED | |||||
05 | Washer | M. 4 LÖCHER | 1 | 11311264692 | $6.90 | ||||
05 | Washer | O. LOCH | 1 | 11311717180 | $1.10 | ||||
06 | Dowel pin | 8 M6X14 | 2 | 07119942079 | $0.30 | ||||
07 | Lock bolt | M10X28 | 1 | 11311266796 | $1.29 | ||||
07 | Lock bolt | M10X35 | 1 | 11311714798 | $1.95 | ||||
08 | Adapter | 1 | 09/1985 | 11311276855 | $4.90 | ||||
09 | Washer | 6,4 | 2 | 09/1985 | 07119931639 | $0.24 | ENDED | ||
09 | Washer | 6-200 HV-ZNS3 | 2 | 09/1985 | 07119904606 | $0.84 | |||
10 | Fillister-head screw | M6X10-8.8 ZN | 2 | 09/1985 | 07119919962 | $0.20 | ENDED | ||
10 | Fillister-head screw | M6X10-8.8-ZNS3 | 2 | 09/1985 | 07119902963 | $0.27 | ENDED | ||
10 | ISA screw | M6X10-8.8-ZNS3 | 2 | 09/1985 | 07129903804 | $1.93 | |||
11 | Gear wheel,tooth belt | SINTER | 1 | 11311717398 | $32.80 | ||||
12 | Set intermediate shaft | B | 1 | 11/1985 | 11359058741 | ENDED | |||
12 | Intermediate shaft | B | 1 | 11/1985 | 11351716095 | $145.96 | |||
only in conjunction with | |||||||||
-- | Pin | 1 | 11/1985 | 12111269328 | $0.18 | ENDED | |||
-- | Gear wheel | B | 1 | 11/1985 | 12111711310 | $77.00 | |||
-- | Washer | 1 | 11/1985 | 11311714795 | $2.12 | ||||
-- | Lock bolt | M10X35 | 1 | 11/1985 | 11311714798 | $1.95 | |||
12 | Intermediate shaft | B | 1 | 11/1985 | 11351716095 | $145.96 | |||
13 | Guide | 1 | 11351280551 | $7.88 | |||||
14 | Countersunk head screw | M6X12 | 2 | 52101817063 | $0.92 | ||||
15 | Washer | M. 4 LÖCHER | 1 | 11/1985 | 11311264692 | $6.90 | |||
15 | Washer | 1 | 11/1985 | 11311714795 | $2.12 | ||||
16 | Lock bolt | M10X28 | 1 | 11/1985 | 11311266796 | $1.29 | |||
16 | Lock bolt | M10X35 | 1 | 11/1985 | 11311714798 | $1.95 | |||
17 | Adjusting pulley | 1 | 11/1985 | 11311711153 | $103.08 | ENDED | |||
only in conjunction with | |||||||||
17 | Adjusting pulley | 1 | 11/1985 | 11311711154 | |||||
only in conjunction with | |||||||||
-- | Tooth belt semicircular profile | Z=127 | 1 | 11/1985 | 11311711081 | ||||
17 | Adjusting pulley | 1 | 11/1985 | 11311711153 | $103.08 | ENDED | |||
18 | Screw | 1 | 11311272433 | $5.13 | |||||
19 | Compression spring | 1 | 11311267746 | $1.09 | |||||
20 | Pin | 1 | 11311280960 | $4.32 | |||||
21 | Washer | A8,4 | 1 | 08/1991 | 07119900052 | $0.11 | ENDED | ||
21 | Washer | 8,4X16X1,6-ZNNV | 1 | 07119907030 | |||||
22 | Hex bolt | M8X20-ZNS | 1 | 07119901120 | $0.60 | ENDED | |||
22 | Hex bolt | M8X20-ZNNIV SI | 1 | 07119903039 | |||||
23 | Label, Tooth Belt Change | 1 | 11311739073 | $0.45 |
Notes
- ENDED = the part has been discontinued (no longer available).
