3' E30 320i Gearshift manual transmission

Gearshift manual transmission

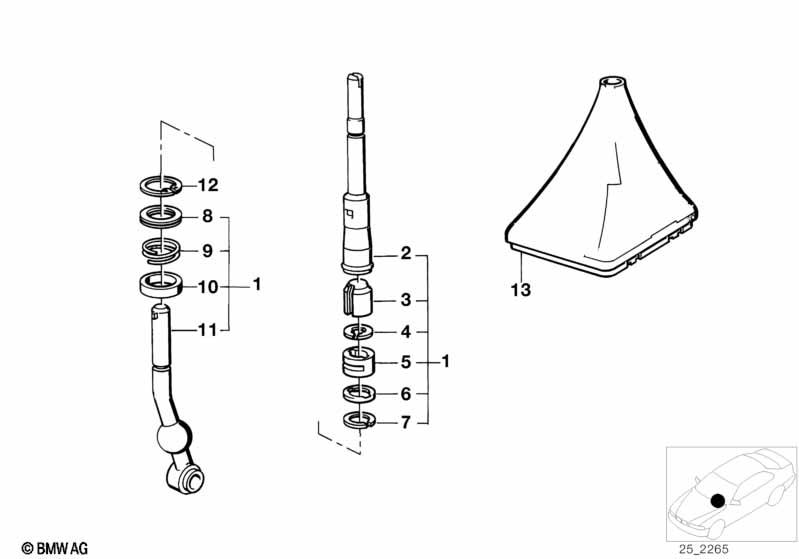

No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
5 speed(overdrive)transmission

=Yes
01 Shift lever 1 09/1986 25111220326 $68.20
01 Shift lever, short 1 09/1986 25111221096 $68.20
02 Shift lever-upper part 1 09/1986 25111220223 $37.04
02 Shift lever-upper part 1 09/1986 25111220778 $91.80
03 Cap 1 25111220228 $3.31
04 Circlip 10-ZNS3 1 07119904911 $0.27
05 Rubber Ring 1 23411666133 $1.77
06 Washer 1 25111220221 $4.39
07 Spring washer 1 23411666122 $1.75
08 Spacer sleeve 1 23411200844 $2.27
09 Compression spring 1 23411200845 $1.33
10 Ball Cup upper 1 23411466110 $8.01
For vehicles with
5 speed(overdrive)transmission

=Yes
11 Shift lever-lower part 1 25117533354 $29.80 +core
12 Lock Ring 1 23411466112 $0.68
13 Gear lever cover SCHWARZ 1 25111220204 $31.91
ONLY APPLIES TO EDITION
13 Cover ANTHRAZIT 1 01/1990 25111221953
only applies to
13 Cover SILBER 1 01/1990 25111221954
only applies to
13 Cover INDIGO 1 01/1990 25111221955
only applies to
-- Shift lever X 01/1990 25111221795 $58.79 ENDED
Notes
  • +core = plus core charge (possibility of a return of the old part)
  • ENDED = the part has been discontinued (no longer available).
