3' E30 320i Splash wall parts

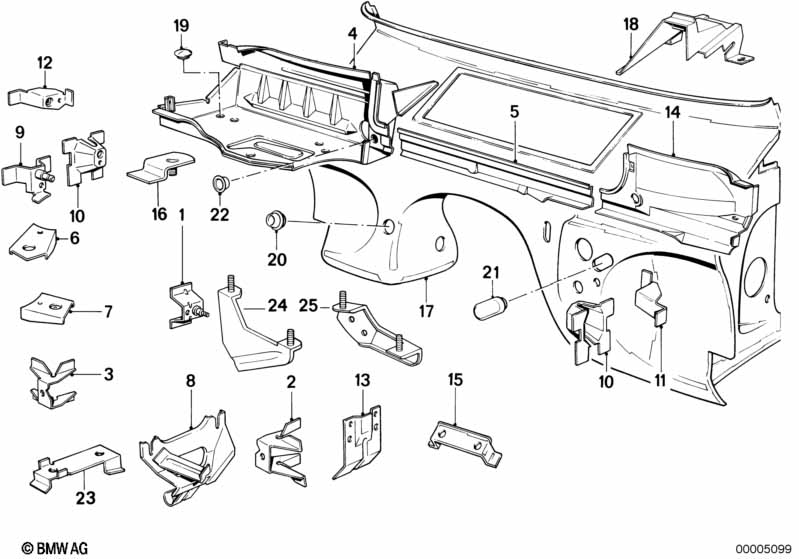

Splash wall parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Support engine hood stay 1 41141884279 $9.30
02 Bracket headlight left 1 41141884469 $4.98
03 Bracket headlight right 1 41141884470 $4.98
04 Battery tray 1 41111929429 $86.67
05 Heater closing panel 1 41131906531 $16.31 ENDED
06 Cooling water compensation tank bracket 1 41141911117 $3.92 ENDED
07 Cooling water compensation tank bracket 1 41141911118 $3.92
08 Support air cleaner 1 41141913049 $36.40
09 Supporting bracket 1 41141906278 $10.45
10 Bracket front 2 41141904779 $11.16 ENDED
11 Bracket left 1 41141888005 $12.72
12 Bracket right 1 41141888006 $12.72 ENDED
13 Bracket, control unit 1 41141904837 $6.02
14 Heater closing panel 1 09/1986 41131906529 $22.60 ENDED
14 Heater closing panel 1 09/1986 41131955930 $21.80 ENDED
15 Support fluid container windshield wash 1 41141871979 $4.42
16 Fuel pipe bracket 1 41111972091 $4.85 ENDED
18 Support 1 41241936200 $26.23
19 Blind plug D=6.9MM X 51711911299 $0.23
20 Blind plug D=35MM 2 51718110127 $0.87 ENDED
20 Blind plug D=35MM 2 07147140849 $0.73
21 Blind plug 30X36MM 2 51711872829 $0.89
22 Blind plug D=52MM 1 51711972464 $9.21
23 Bracket f.sensor 1 41141936985 $8.26
Notes
  • ENDED = the part has been discontinued (no longer available).
