3' E30 320i Housing parts heater/microf.instrument

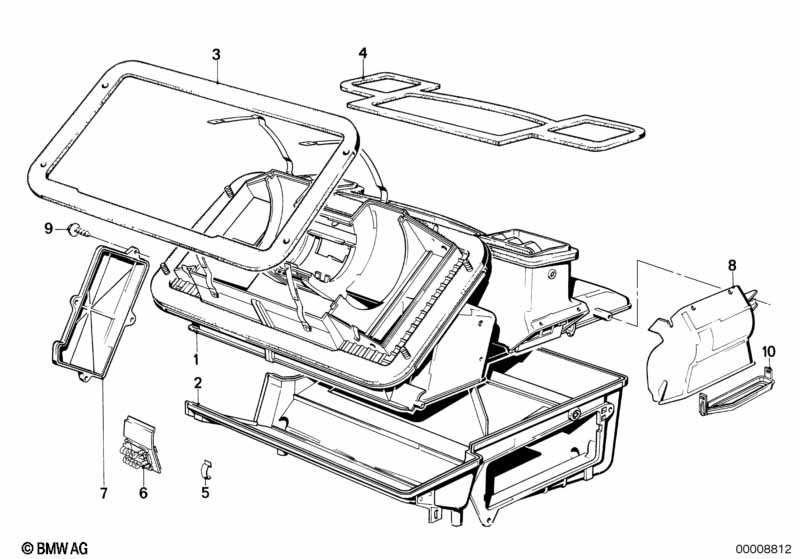

Housing parts heater/microf.instrument
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i only applies to
Heater (inlet aluminium)
01 Housing top 1 64111370614 $272.30 ENDED
For vehicles with
Microfiltre

=Yes
01 Housing top 1 09/1989 64311394098 ENDED
02 Housing bottom 1 64311394094 ENDED
03 Gasket 1 64111370936 $28.91
04 Gasket 1 64111370937 $31.16
05 Clamp X 64111370938 $0.38
06 Resistor 1 64111370927 $49.29
For vehicles with
Microfiltre

=Yes
06 Resistor 1 09/1989 64116912633 $38.57
07 Cover 1 64111370929 $86.30
08 Air channel left 1 64211370619 $13.43
08 Air channel right 1 64211370620 $9.17
09 Screw X 64111370949 $0.38
09 Hex bolt X 64111373606 ENDED
10 Cover lid 2 64111372670 $0.80
Notes
  • ENDED = the part has been discontinued (no longer available).
