3' E30 316 Spoiler front

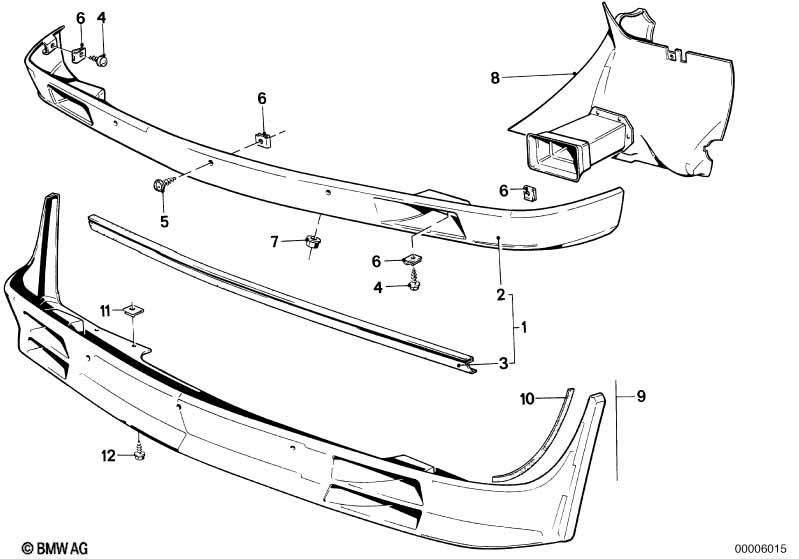

Spoiler front
No. Description Supp. Qty  From   Up To  Part Number Price Notes
02 Front apron 1 09/1985 51711911983 $274.38
03 Rubber strip lower 1 09/1985 51711916070 ENDED
04 Hex head screw ST4,8X16-C-Z2 X 09/1985 07119916946 $0.22 ENDED
04 Hex head screw ST4,8X16-ZNS X 09/1985 07119901294 $0.25 ENDED
04 Hex head screw ST4,8X16-ZNS3 X 09/1985 07119901299 $0.25
05 Sheet metal screw B4,8X16 3 09/1985 51711916018 $0.12 ENDED
05 Sheet metal screw 4,8X16 3 09/1985 25111220298 $0.10
05 Sheet metal screw 4,8X16 3 09/1985 07119904929 $0.17 ENDED
05 Sheet metal screw ST4,8X16 3 09/1985 07119904185 $0.11
06 Body nut ST4,8-1 X 09/1985 07129925735 $0.18 ENDED
06 Set body nut 25 ST4,8-1 X 09/1985 07509063124 ENDED
06 Body nut ST4,8-1-ZNS X 09/1985 07129901647 $0.11 ENDED
06 Body nut ST 4,8 X 09/1985 07129904222 $0.11 ENDED
06 Plug-in nut M5 X 09/1985 46637651465 $1.29
07 Plastic nut M6 2 09/1985 16131176747 $0.53
08 Covering left 1 09/1985 51711916171 $20.45
08 Covering right 1 09/1985 51711916172 $20.45
09 Installing set spoiler front 1 09/1985 51711932197 $613.19 ENDED, EBA 9770605, ABE 9780592
10 Adhesive tape 3000MM 1 09/1985 51711976999 $28.02
11 Body nut ST4,8-9 4 09/1985 07129925734 $0.18 ENDED
11 Body nut ST4,8-9-ZNS3 4 09/1985 07129904150 $0.25
12 Hex head screw ST4,8X13-C-Z2 2 09/1985 07119916941 $0.18 ENDED
12 Hex head screw ST4,8X13-ZN3 2 09/1985 07119904285 $0.38
Notes
  • ENDED = the part has been discontinued (no longer available).
  • EBA = Einbauanleitung (Installation instructions)
  • ABE = Allgemeine Betriebserlaubnis (General Operating Permit)
