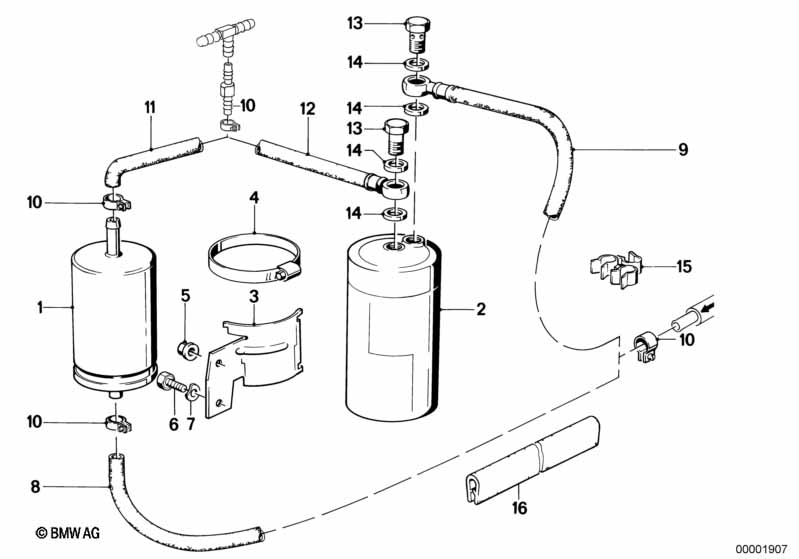

3' E30 325i Fuel supply/filter

Fuel supply/filter
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Fuel filter D=80MM 1 08/1978 13321270038 $44.04 ENDED
01 Fuel filter 1 13321268231
02 Fuel strainer with pre separator D=82MM 1 13321278330 $75.54 ENDED
03 Bracket fuel strainer 1 13321284682 $2.90 ENDED
03 Bracket fuel strainer 1 13321713062
04 Hose clamp L77-84 1 07129952131 $1.78
05 Hex nut M6-Z2 1 02/1994 51451868108 $0.50 ENDED
05 Hex nut with plate M6 1 07147134319 $1.05
06 Hex bolt M6X16-8.8 ZN 2 07119913466 $0.18 ENDED
06 Hex bolt M6X16-8.8-ZNS3 2 07119904357 $0.36
07 Spring washer B6 2 07119933082 $0.09
08 Fuel hose 8X13MM X 16121180409 $20.43
09 Fuel pipe 1 13321289037 $17.20 ENDED
10 Hose clamp L12-15 3 07129952104 $1.18
11 Fuel hose 32MM-210MM 1 13311288284 $17.10
11 Fuel hose 561MM-920MM 1 13311722565 $45.38
11 Fuel hose 211MM-560MM 1 13311711004 $34.20 ENDED
11 Fuel hose 8X13MM X 16121180409 $20.43
12 Fuel pipe 1 13311286583 $20.50
12 Fuel pipe 1 13321289037 $17.20 ENDED
13 Hollow bolt M14X1,5X26 2 32411094908 $2.78 ENDED
13 Hollow bolt M14X1,5X26 2 32416783886 $2.11 ENDED
13 Hollow bolt M14X1,5X26 2 32416852469
14 Gasket ring A14X18-AL 4 07119963200 $0.38
14 Gasket ring 4 13511304359 $2.64
15 Bracket fuel pipe 1 13541287046 $1.57 ENDED
16 Edge protection GRAU X 51721832146 $5.82
Notes
  • ENDED = the part has been discontinued (no longer available).
