3' E30 325i Transmission oil cooling

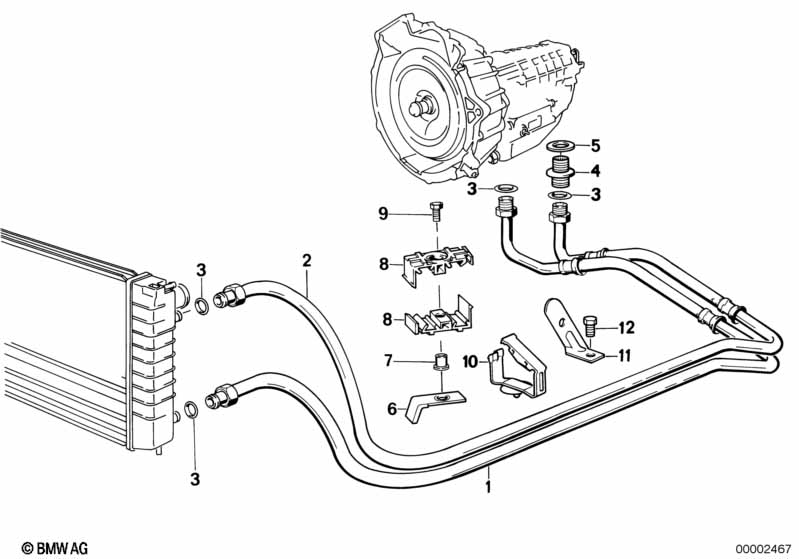

Transmission oil cooling
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooling pipe inlet 1 09/1987 17221719195 $47.91
02 Oil cooling pipe outlet 1 09/1987 17221719196 $47.91
03 O-ring 9,25X1,78/FPM 4 09/1987 17211742635 $0.80
04 Threaded pipe joint M16-M18X1,5 2 09/1987 17221719373 $17.12
05 Gasket ring A16X22-CU 2 09/1987 07119963276 $0.71
06 Bracket oil pipe 1 09/1987 17221719391 $0.83
07 Spacer sleeve D6 1 09/1987 17227798686 $3.32
08 Bracket oil pipe 2 09/1987 17201712210 $1.02
09 Hex bolt with washer M6X30-U2-ZNS3 1 09/1987 07119903994 $0.65
10 Bracket oil pipe 1 09/1987 17221719407 $1.33
11 Bracket oil pipe 1 09/1987 17221719435 $0.61 ENDED
12 Hex bolt M8X16U2-8.8ZNS3 1 09/1987 07119904279
12 Hex bolt M8X16-Z3 1 09/1987 17221719369 $0.42 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
