3' E30 325i Engine oil cooling

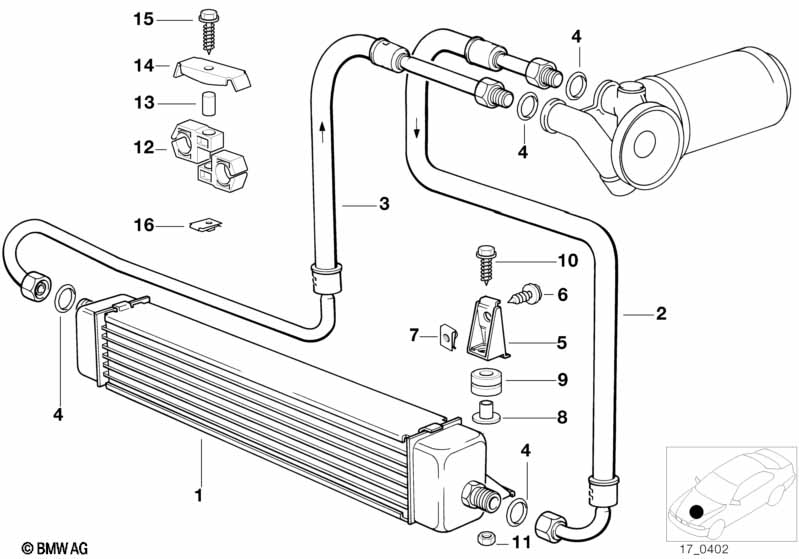

Engine oil cooling
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Oil cooler 1 09/1987 17201719262 $426.82 ENDED, SI 170190201
01 Oil cooler 1 09/1987 17211719179 $351.68
02 Oil cooling pipe outlet 1 09/1987 17211719194 $64.77 SI 170190201
03 Oil cooling pipe inlet 1 09/1987 17211719193 $109.29 SI 170190201
04 O-ring 13,4X1,78 4 09/1987 17222245358 $1.18
05 Bracket oil cooler mounting 2 09/1987 17211719126 $1.39
06 Hex head screw B6,3X19-Z2 2 09/1987 17111709443 $0.44 ENDED
07 Body nut ST6,3-2-ZNS3 2 09/1987 07129904232 $0.16
08 Bush 2 09/1987 17211712844 $0.98
08 Bush 2 09/1987 17211723788 $4.02
09 Rubber grommet 2 09/1987 17211712839 $1.98
09 Rubber grommet 2 09/1987 17211723786 $4.73
10 Hex head screw B 6,3X34-Z2 2 09/1987 17201719280 $1.18 ENDED
10 Hex head screw ST6,3X38-C 2 09/1987 07119916886 $0.96
10 Hex head screw B 6,3X50 2 09/1987 17201723799 $0.95 ENDED
10 Hex head screw B6,3X50-Z1 2 09/1987 17111709490 $0.97 ENDED
11 Hex nut 2 09/1987 51711924799 $0.18 ENDED
12 Bracket oil pipe 2 09/1987 17211712759 $3.70 SI 170190201
13 Sleeve 1 09/1987 61131362361 $2.83
14 Fixing clamp 1 09/1987 17211709491 $9.47
15 Hex head screw B6,3X50-Z1 1 09/1987 17111709490 $0.97 ENDED
16 Body nut ST6,3-2-ZNS3 1 09/1987 07129904232 $0.16
Notes
  • ENDED = the part has been discontinued (no longer available).
  • SI = Service Information
