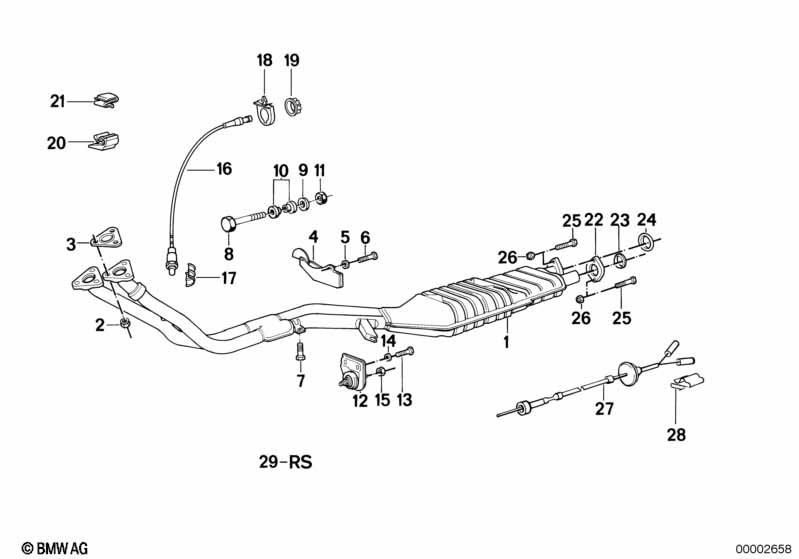

3' E30 325i Exhaust system with catalyst

Exhaust system with catalyst
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 RP-exhaust pipe catalytic converter 1 11761716744 $1824.91
02 Hex nut M10 6 18301737774 $1.65
03 Gasket Asbestos Free 2 11761711717 $18.37
05 Washer A8,4 2 33311108205 $0.16
06 Hex bolt M8X20-ZNS 2 07119901120 $0.60 ENDED
06 Hex bolt M8X20-ZNNIV SI 2 07119903039
07 Hex bolt with washer M8X25-Z1 1 07119901687 $0.62
08 Hex bolt M8X35 2 07119913676 $0.36
09 Washer A8,4 2 33311108205 $0.16
10 Joint sleeve D=8MM 4 18207546579 $2.86
11 Self-locking hex nut M8-8-ZNS3 2 07129904002 $0.18
12 Bracket catalyzer 4HP22 1 11761716390 $99.32 +core
13 Hex bolt M8X18 2 05/1993 07119913627 $0.24 ENDED
13 Hex bolt M8X18-8.8-ZNS3 2 07119904146 $0.65
14 Washer A8,4 2 33311108205 $0.16
15 Hex nut with plate M8 2 05/1993 51111835625 $0.69 ENDED
15 Hex nut with plate M8 2 51117070183 $0.77
16 Oxygen sensor 4-POL/540MM 1 09/1987 11781716114 $267.20
16 Oxygen sensor L=540MM 1 09/1987 11781730005 $267.20 ENDED
16 Oxygen sensor L=640MM 1 09/1987 11781720860 $215.65
17 Protection plate 1 11781710590 $33.49 ENDED, +core
18 Lambda-probe bracket 1 11781721039 $1.17
19 Lock Ring 1 12521732696 $2.10
20 Cable clamp D=6MM 1 63121364431 $0.93
21 Cable clamp D=4,5MM 1 61131353865 $0.42
22 Flange 1 18111712064 $12.64
23 Gasket ring asbesto-free 45MM 1 18111723541 $8.37 ENDED
23 Gasket ring asbesto-free 45MM 1 18111723533
24 Gasket ring 42MM 1 18111245960 $8.37 ENDED
24 Conical ring 42MM 1 18111245489 $5.47
25 Hex bolt M8X55-8.8 4 07119902957 $5.27
26 Hex nut wiht flange M8 4 05/1993 11621711954 $0.60 ENDED
26 Hex nut wiht flange M8 4 18307620549
Notes
  • ENDED = the part has been discontinued (no longer available).
  • +core = plus core charge (possibility of a return of the old part)
