3' E30 325i Gearbox mounting parts

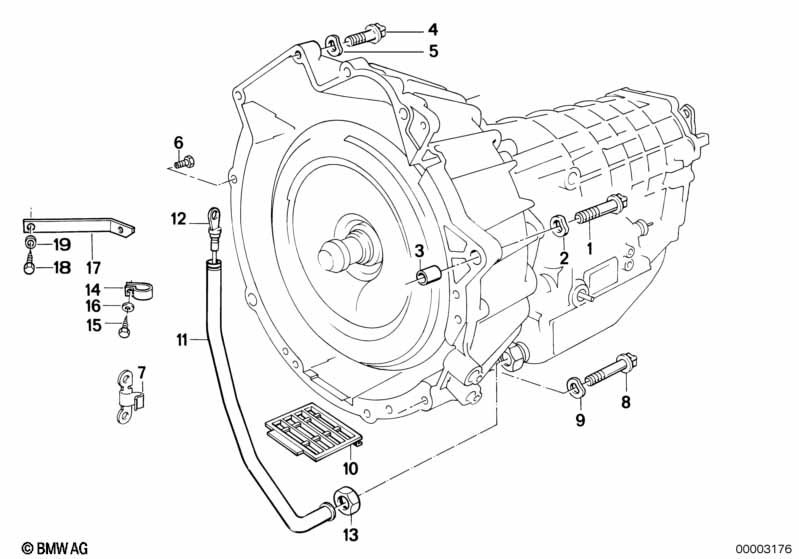

Gearbox mounting parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
  i 4HP22
01 Torx bolt M12X75 2 23001222893 $1.62
02 Washer 13-140 HV-ZNS 2 07119931699 $0.40 ENDED
02 Washer 12-200 HV-ZNS3 2 07119906063
03 Dowel D=14,5MM 2 11117524470 $1.65
04 Torx bolt M12X45 2 23001222890 $1.23
05 Washer 13-140 HV-ZNS 2 07119931699 $0.40 ENDED
05 Washer 12-200 HV-ZNS3 2 07119906063
06 Hex bolt M6X16-8.8-ZNS 1 07119913015 $0.60
08 ASA-Bolt M8X50-8.8-ZNS3 4 23001222887 $1.13
09 Wave washer B8 4 01/1993 07119932095 $0.09 ENDED
09 Wave washer 4 07119904115 $0.09
10 Protection grid f additional fan 1 24111215126 $1.87
11 Oil fill-in tube 1 01/1990 24111217436 $25.53
11 Oil fill-in tube 1 01/1990 24101219072 $25.05
12 Dipstick 1 01/1990 24111216250 $15.78
12 Dipstick 1 01/1990 24111218383 $17.25
13 Cap nut 1 24111205649 $5.61
14 Clamp D=16/6,4 1 61131355966 $1.62 ENDED
15 Hex bolt M6X16-8.8-ZNS 1 07119913015 $0.60
16 Wave washer B6 1 07119932099 $0.38
16 Wave washer B6-ZNS3 1 07119904496 $1.78 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
