3' E30 325i ZF 4hp22/24-h control unit+attach.parts

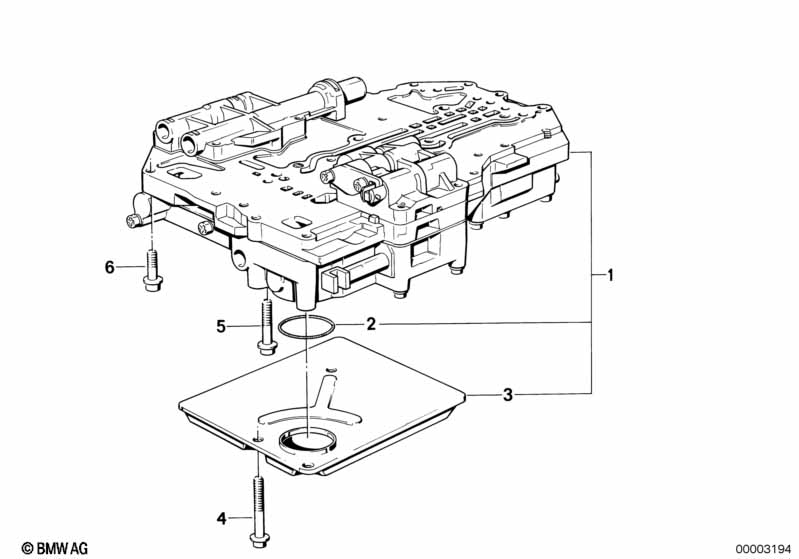

ZF 4hp22/24-h control unit+attach.parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Control unit 1 07/1988 24341218096 $1018.35 ENDED
01 Control unit 1 07/1988 24341218637 $1127.16 ENDED
For vehicles with
National version Canada

L838A=Yes
01 Control unit 1 07/1988 09/1989 24341218637 $1127.16 ENDED
01 Control unit 1 09/1989 24341218096 $1018.35 ENDED
02 O-ring 1 09/1989 24341217437 $1.79 ENDED
02 O-ring 1 09/1989 24311218570 $1.59
only in conjunction with
-- Oil strainer 1 09/1989 24311218550 $36.30
02 O-ring 1 09/1989 24311218570 $1.59
03 Oil strainer 1 09/1989 24341215544 ENDED
03 Oil strainer 1 09/1989 24311218550 $36.30
only in conjunction with
-- O-ring 1 09/1989 24311218570 $1.59
03 Oil strainer 1 09/1989 24311218550 $36.30
04 Fillister-head screw M6X65 5 24341215492 $2.09
05 Torx bolt M6X60 3 24341422672 $2.66
06 Torx bolt M6X30 8 24341421078 $1.61
Notes
  • ENDED = the part has been discontinued (no longer available).
