3' E30 325i ZF 4hp22/24 housing parts/lubric.system

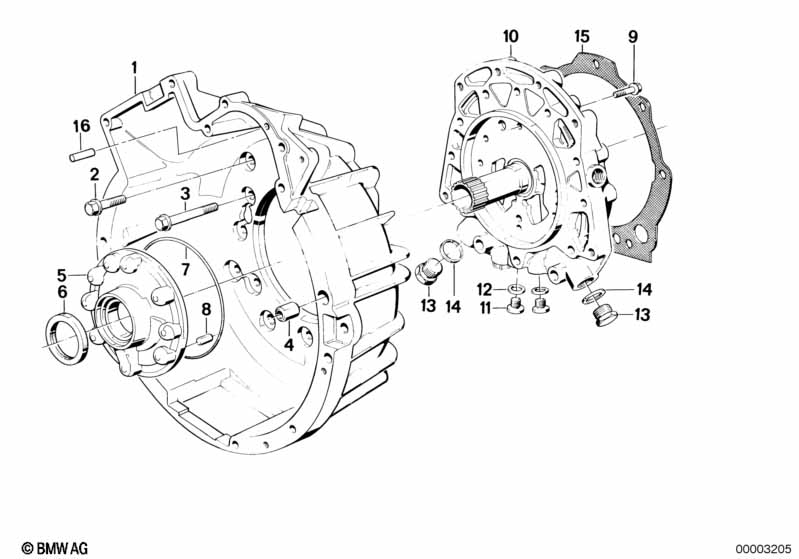

ZF 4hp22/24 housing parts/lubric.system
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Converter housing 1 24411216157 $385.35 ENDED
02 Hex bolt M10X30-Z3 6 24401215401 $5.20 ENDED
03 Hex bolt M10X70-Z3 X 24401215402 $4.42 ENDED
04 Dowel D=14,5/11,0MM 2 24411200459 $13.83
05 Oil pump 1 09/1989 24311218512 $209.51 ENDED
05 Oil pump 1 09/1989 24311218660 $196.54
06 Shaft seal 40X52X7 1 24311422671 $11.45
07 O-ring 124,5X3 1 24311217133 $7.24
08 Sleeve 8X18 1 24311218652 $1.13
09 Hex bolt with washer M6X28-Z3 8 07119915183 ENDED
10 Intermediate plate assy 1 24161219065 $379.71 ENDED
11 Screw plug M14X1,5 2 24401215399 $4.42 ENDED
12 Gasket ring A14X18 2 24401421740 $0.57
13 Screw plug M20X1,5 2 24401215398 $6.12 ENDED
14 Gasket ring A20X24-AL 2 24401215397 $0.60 ENDED
14 Gasket ring A20X24-AL 2 07119963340 $0.38
15 Gasket Asbestos Free 1 24111215404 $3.13
Notes
  • ENDED = the part has been discontinued (no longer available).
