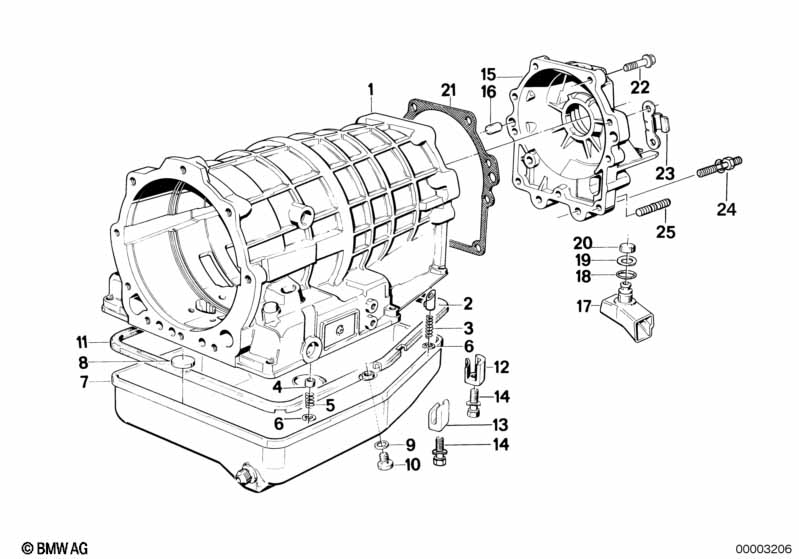

3' E30 325i ZF 4hp22/24 housing parts/oil pan

ZF 4hp22/24 housing parts/oil pan
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Transmission housing 1 24111217343 $1478.70 ENDED
02 Sleeve 1 24111216253 $2.77
03 Compression spring D=1,0/L=42,2 X 24111215487 $1.68
04 Sleeve X 24341606168 $4.39
05 Compression spring D=0,8/L=26,6 4 24341606170 $6.09
06 Lock Ring 10X1 X 24111218535 $1.02
07 Oil Pan 1 24111215935 $130.02
08 Magnet 2 24111206468 $4.62
09 Gasket ring A10X14 1 24111421508 $1.81
10 Screw Plug With Gasket Ring M10X1 1 24111421387 $3.23
11 Profile-gasket 1 24111217082 $14.84
12 Bracket 4 24111218679 $4.47
13 Bracket 2 24111217129 $6.52
14 Hex bolt with washer M6X37 6 24111217130 $1.58
15 Drive extension 1 24111215461 $161.07 ENDED
16 Dowel pin 10X16 2 24111215462 $1.84 ENDED
17 Ventilation valve 1 24111218007 $10.21
18 O-ring 1 24111217139 $3.13
19 Circlip 1 24111216347 $1.30
20 Cover 1 24111205976 $2.32
21 Gasket Asbestos Free 1 24111215463 $1.65
22 Hex bolt with washer M8X32-Z3 9 07119915097 ENDED
23 Clamp 1 24131215793 $2.90 ENDED
25 Stud bolt 2 24131215724 $2.58 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
