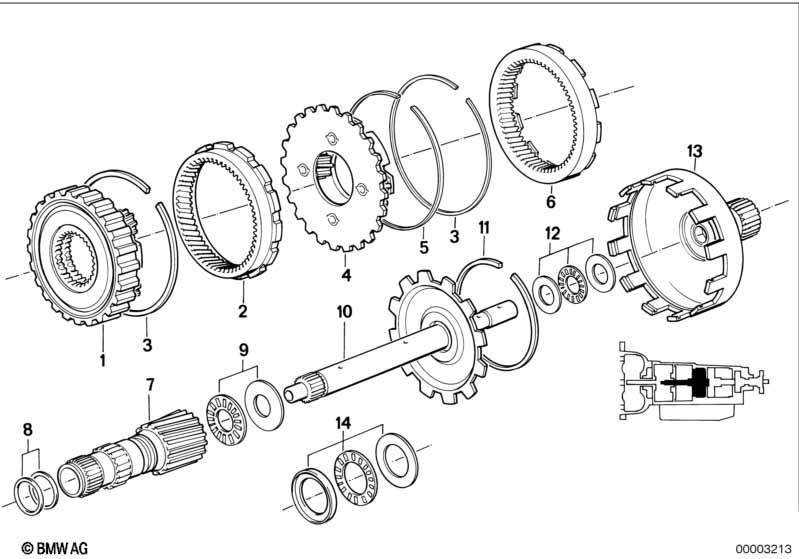

3' E30 325i ZF 4hp22/24 planet wheel sets

ZF 4hp22/24 planet wheel sets
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Planet wheel carrier 1 24221421743 $936.24 ENDED
02 Hollow gear wheel,output Z=73 1 24241215495 $167.15 ENDED
03 Snap ring D=122MM 2 24211205989 $6.33 ENDED
04 Planet wheel carrier 1 24241205970 $369.07 ENDED
05 Snap ring 1 24241215427 $3.05 ENDED
06 Hollow gear wheel,input Z=73 1 24241205960 $242.89 ENDED
07 Sun shaft 1 24221219757 $205.90 ENDED
08 Rectangring 32,4X35,0X2,0 2 24241216358 $14.03
09 AX bearing 1 24241209806 $6.22
10 Intermediate shaft 1 24241216332 $339.91
11 Snap ring D=107MM 1 24241205964 $3.05 ENDED
12 AX bearing 1 24241215428 $7.42
13 Shaft 1 24241216255 $297.19 ENDED
14 AX bearing 1 24241215430 $12.14 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
