3' E30 325i ZF 4hp22/24 planet wheel sets

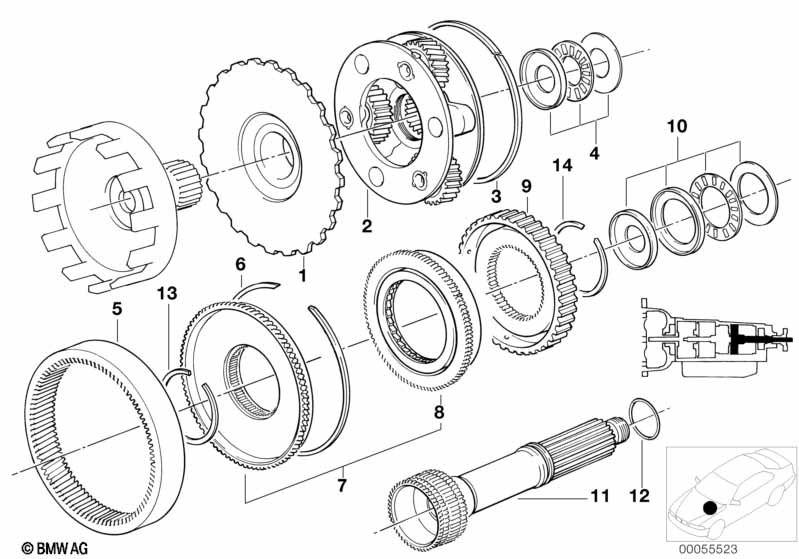

ZF 4hp22/24 planet wheel sets
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Sun gear 1 24241219332 $171.86 ENDED
02 Planet wheel carrier 1 24221219337 $476.88 ENDED
03 Rectangring 1 24241217184 $17.27 ENDED
04 AX bearing 1 24241215436 $7.98
05 Hollow gear wheel,output Z=83 1 24241215434 $169.63 ENDED
06 Snap ring 1 24241215435 $1.12 ENDED
07 Free wheel, complete 1 07/1988 24237505840 $299.09 ENDED
07 Free wheel, complete 1 07/1988 24237505839 $239.94 ENDED
For vehicles with
National version Canada

L838A=Yes
07 Free wheel, complete 1 07/1988 09/1989 24237505839 $239.94 ENDED
07 Free wheel, complete 1 09/1989 24237505840 $299.09 ENDED
08 Free wheel 1 07/1988 24231219334 $299.09 ENDED
08 Free wheel, complete 1 07/1988 24237505840 $299.09 ENDED
08 Free wheel 1 07/1988 12/1992 24231219333 $239.94 ENDED
08 Free wheel, complete 1 07/1988 24237505839 $239.94 ENDED
For vehicles with
National version Canada

L838A=Yes
08 Free wheel 1 07/1988 09/1989 24231219333 $239.94 ENDED
08 Free wheel, complete 1 07/1988 09/1989 24237505839 $239.94 ENDED
08 Free wheel 1 09/1989 24231219334 $299.09 ENDED
08 Free wheel, complete 1 09/1989 24237505840 $299.09 ENDED
09 Disc carrier 1 24231217163 $70.69 ENDED
10 AX bearing 1 24231215442 $11.35
11 Output shaft 1 24211216334 $351.54 ENDED
12 O-ring 25,12X1,78 1 24211217132 $0.97
13 Snap ring 1 24231215339 $0.66 ENDED
14 Snap ring 1 24231215437 $0.98 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
