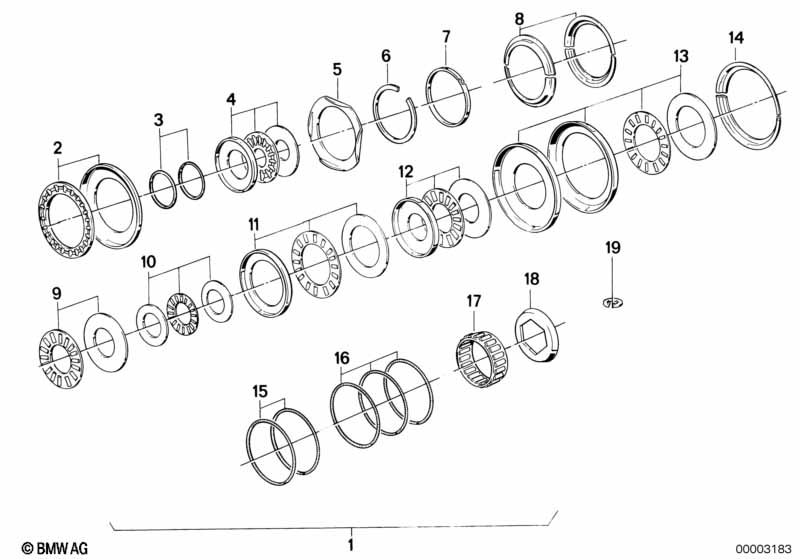

3' E30 325i ZF 4hp22/24 ax-bearing single parts

ZF 4hp22/24 ax-bearing single parts
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Repair set ax-bearing 1 24001215582 $182.81
02 AX bearing 1 24231209808 $10.92
03 Rectangring 22,7X25X2 2 24211216345 $14.03
04 AX bearing 1 24231215422 $6.41
05 Circlip 1 24231205931 $1.73
06 Snap ring 1 24231205934 $0.84
07 Rectangring 1 24231215980 $12.19
08 Supporting ring 2 24231205946 $1.89
09 AX bearing 1 24241209806 $6.22
10 AX bearing 1 24241215428 $7.42
11 AX bearing 1 24241215430 $12.14 ENDED
12 AX bearing 1 24241215436 $7.98
13 AX bearing 1 24231215442 $11.35
14 Supporting ring 1 24231215443 $2.43 ENDED
15 Rectangring 2 24231217140 $12.19
16 Rectangring 3 24231217141 $6.48
17 Needle sleeve 35X42X12 1 24111218008 $14.67
18 Securing plate 1 23221201330 $2.33
19 Lock Ring 10X1 8 24111218535 $1.02
Notes
  • ENDED = the part has been discontinued (no longer available).
