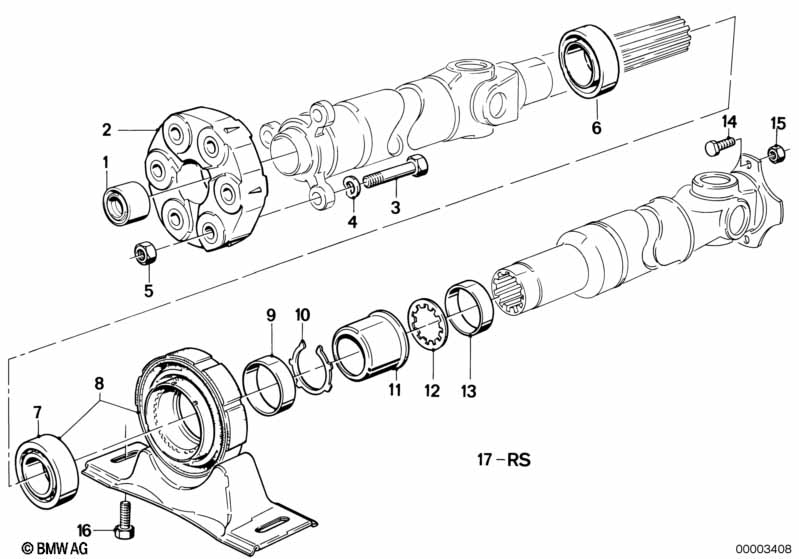

3' E30 325i Drive shaft,univ.joint/center mounting

Drive shaft,univ.joint/center mounting
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Centering sleeve 1 26117526611 $11.32
02 Universal joint LK=78MM/D=110MM 1 26111225624 $92.56
LK = bolt hole
03 Hex bolt M10X50/10.9 6 26111209498 $2.73
05 Self-locking hex nut M10 6 07129964672 $0.36
06 Dust protection 1 26111225089 $2.67
07 Grooved ball bearing D=55/D=30 1 26121225071 $26.16
08 Center Mount 55X13X30 1 09/1987 26121225152 $90.77
08 Center Mount 55X13X30 1 09/1987 26121226723 $83.95
09 Dustcover plate D=30X58X5,5-CRH 1 26111225088 $3.08
10 Lock Ring 1 26123648156 $0.98
11 Threaded ring with clamp-ring 1 26117514037 $12.52
12 Tooth washer 1 26111209285 $2.73
13 Threaded ring with clamp-ring 1 26117514037 $12.52
14 Knurled bolt M10X25 4 26111206718 $2.18
15 Self-locking hex nut M10 4 07129964672 $0.36
16 Hex bolt with washer M8X22-SB-Z4 2 07119915160 ENDED
Notes
  • ENDED = the part has been discontinued (no longer available).
