3' E30 325i Parking brake/control

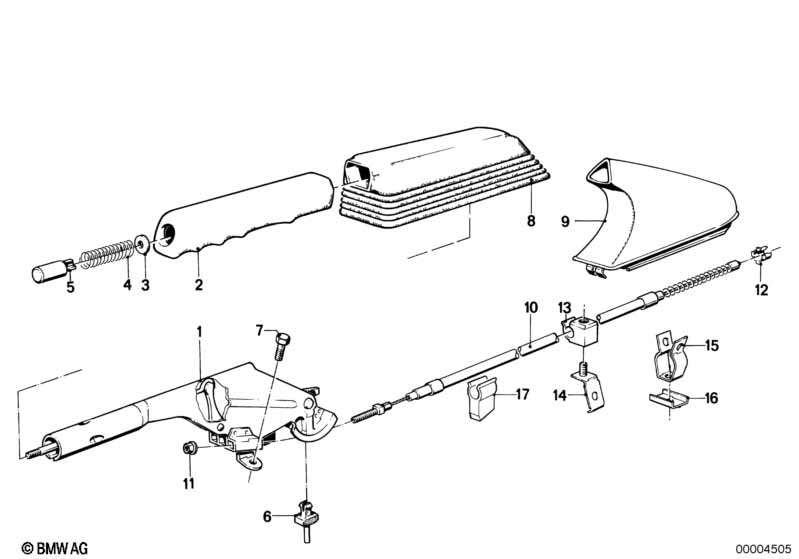

Parking brake/control
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Handbrake lever 1 34411154107 $30.56 ENDED
02 Handbrake handle SCHWARZ 1 34411153277 $5.09
03 Rubber washer 1 34414045712 $0.20
04 Compression spring 1 34411150662 $0.40
05 Push-button 1 34411152393 $2.22
06 Guide 1 34411117897 $0.63
07 Hex bolt with washer M8X18-SB-Z1 3 07119915072 $0.30
08 Handbrake lever cover SCHWARZ 1 34411154166 $21.69
ONLY APPLIES TO EDITION
09 Handbrake lever cover SILBER 1 34411160158
09 Handbrake lever cover INDIGO 1 34411160159 ENDED
09 Leather handbrake lever cover SCHWARZ 1 34412230012 $79.92
10 Bowden cable 2 34411158421 $34.54
11 Self-locking hex nut M6 2 34411152614 $0.72 ENDED
11 Self-locking hex nut M6 2 07146778500 $0.47
12 Clamp 2 34411153126 $1.10
13 Tubing support 2 34411154158 $0.68
14 Bracket 2 34411153880 $0.68
Notes
  • ENDED = the part has been discontinued (no longer available).
