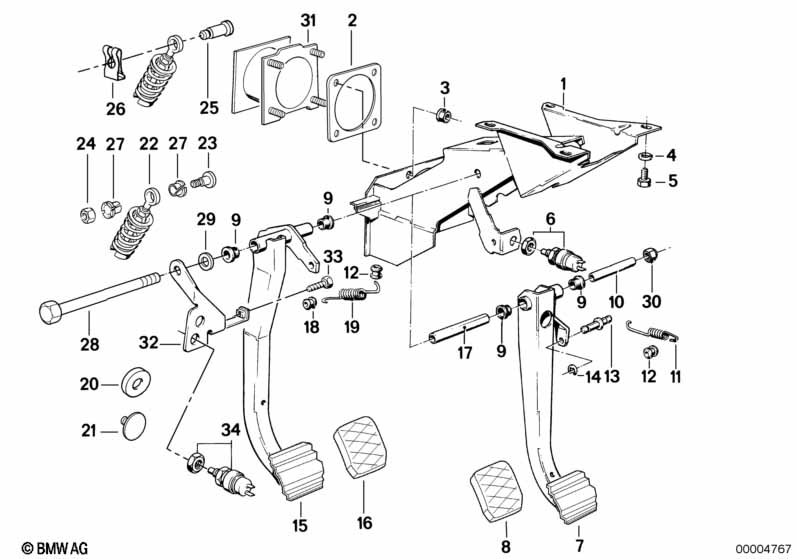

3' E30 325i Pedals/stop light switch

Pedals/stop light switch
No. Description Supp. Qty  From   Up To  Part Number Price Notes
01 Supporting bracket, foot controls 1 35111157719 $41.61
For vehicles with
Air bag

=Yes
01 Supporting bracket, foot controls AIRBAG 1 35111157720 $41.61
02 Gasket 1 35111150370 $0.95
03 Self-locking collar nut M8-8-ZNS 4 07/2007 31331092887 $0.58 ENDED
03 Self-locking collar nut M8-8-ZNS3 4 07/2007 07119904295 $0.36
03 Self-locking collar nut M8-10 ZNS3 4 07119905374
04 Washer A8,4 2 24111690120 $0.42
05 Hex bolt with washer M8X22-SB-Z4 2 07119915160 ENDED
06 Stop light switch 2-POLIG 1 09/1986 61318360420 $32.07
08 Rubber pad B=108MM 1 35211113906 $14.86
only applies to
-- Brake pedal X 35211155018 $24.91 ENDED
09 Bushing D=18,1MM 2 04/1989 35211109541 $1.84
09 Bushing 2 04/1989 35211158290 $1.52
10 Spacer sleeve 14 X1,8 X70,5MM 2 35211150346 $2.58 ENDED
11 Tension spring 1 35211152371 $11.53
12 Grommet D=7,5MM 1 35411113728 $0.57
13 Pin 1 34311152270 $2.07
14 Clamp 1 34331120538 $0.60
17 Spacer sleeve L=86,5MM 1 35311154734 $2.20
18 Grommet 1 35311113725 $0.72
28 Hex bolt M10X90 1 07119900237 $1.98
29 Washer A10,5 1 07119931020 $0.40 ENDED
29 Washer ZNS3 1 05/1991 07119904198 $0.45
29 Washer 10-200 HV-ZNNIV 1 07119904168 $8.35
30 Self-locking hex nut M10 1 07129964672 $0.36
Notes
  • ENDED = the part has been discontinued (no longer available).
