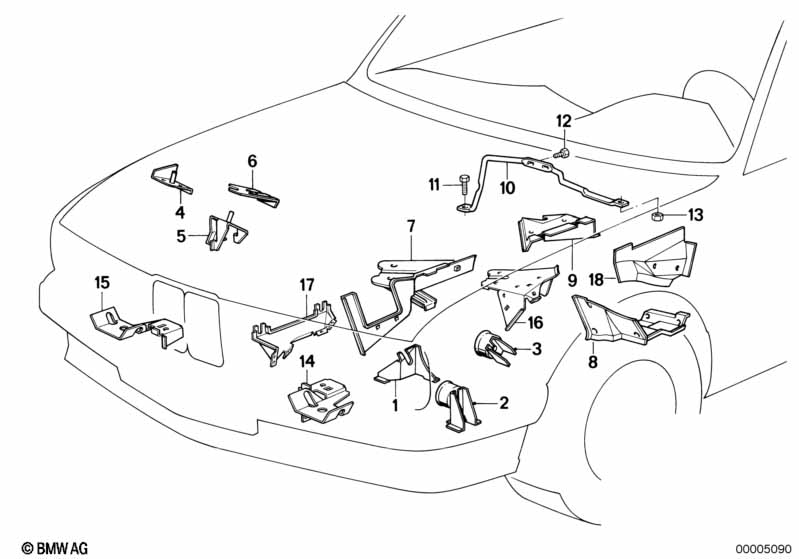

3' E30 325i Front body bracket

Front body bracket
No. Description Supp. Qty  From   Up To  Part Number Price Notes
For vehicles with
Anti block system (ABS)

=Yes
01 Bracket ABS hydraulic unit 1 41111922477 $4.93 ENDED
02 Bracket ABS-Hydraulic unit front 1 41111922478 $6.78 ENDED
03 Bracket ABS hydraulic unit rear 1 41111922479 $6.95 ENDED
For vehicles with
Air bag

=Yes
10 Support 1 51711935859 $65.84 ENDED
11 Hex bolt with washer M8X22-Z3 1 07119915084 $0.41
12 Hex bolt with washer M8X16-Z3-2 2 07119915071 $0.47
13 Hex nut with plate M8 1 05/1991 51111835625 $0.69 ENDED
13 Hex nut with plate M8 1 51117070183 $0.77
14 Bracket radiator left 1 09/1987 41111979495 $5.03
15 Bracket radiator right 1 09/1987 41111979496 $4.98
Notes
  • ENDED = the part has been discontinued (no longer available).
